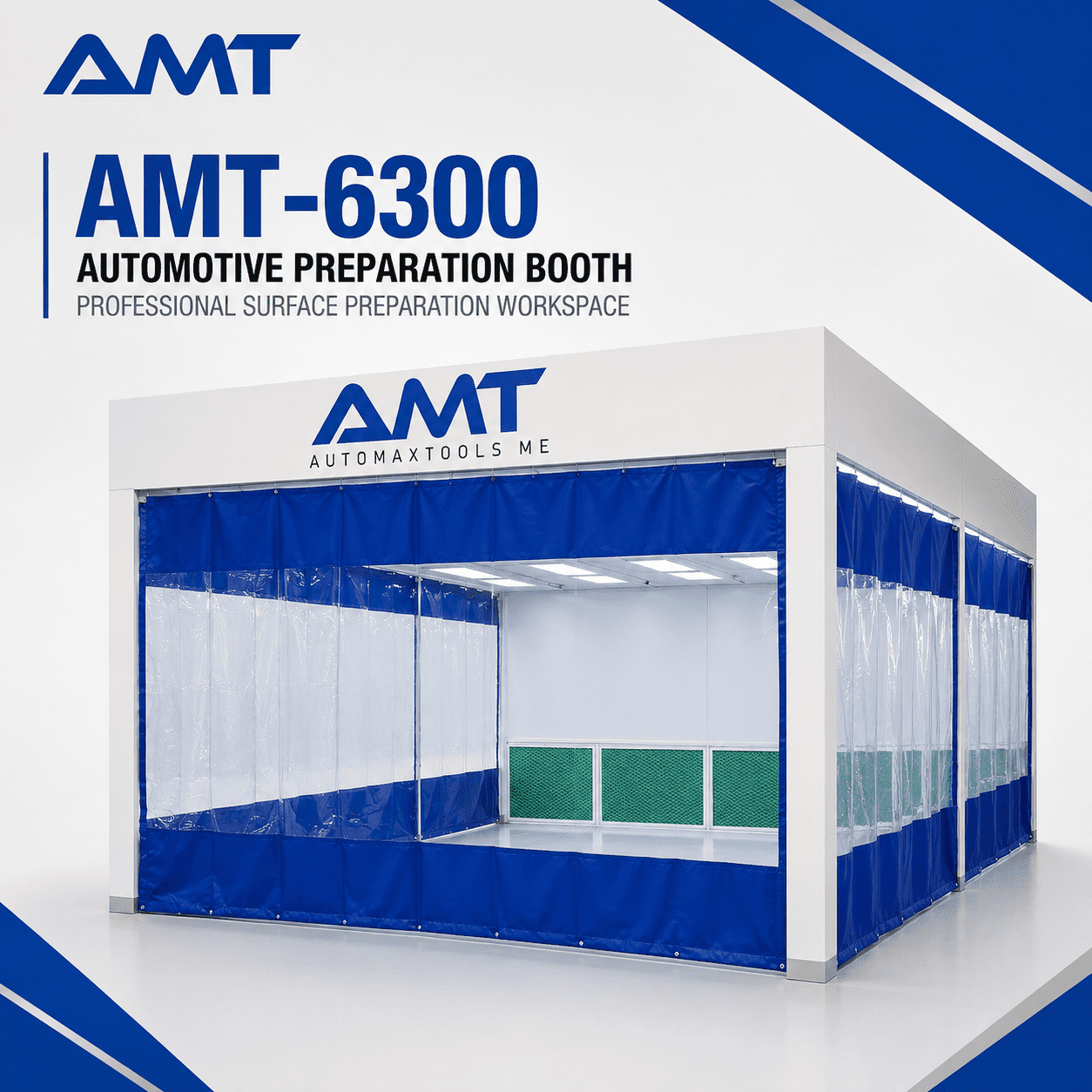

AMT – 6300 – Automotive Preparation Booth with Exhaust System

The AMT – 6300 Automotive Preparation Booth is a professional vehicle-body preparation station designed for sanding, masking, surface preparation, and refinishing work. It combines a separated preparation area with manual PVC curtains, ceiling filtration, exhaust filtration, workshop lighting, floor deflectors, and a dedicated extraction system.

Product highlights: approximately 6300 × 3550 × 3100 mm preparation-station structure; 2550 mm clear working height; 5.5 kW exhaust fan; 380 V three-phase electrical supply; six ceiling-filter sections; four fiberglass exhaust filters; six light-box assemblies; five manually operated PVC curtain sets; two air-return cabinets; and a dedicated electrical control box.

Technical Specifications

SpecificationDetails
BrandAMT
Model / SKUAMT-6300
Product TypeAutomotive Preparation Booth
Preparation-Station SizeApproximately 6300 × 3550 × 3100 mm
Overall Installed LengthApproximately 7550 mm including the fan-cabinet section
Clear Working Height2550 mm
Exhaust Fan5.5 kW
Power Supply380 V / 3-phase / 50 Hz
Lighting System6 light-box assemblies
Ceiling Filters6 pieces, 2040 × 1240 × 25 mm
Exhaust Filtration4 fiberglass filters
Curtain System5 manually operated PVC curtain sets
Control SystemDedicated electrical control box
Order on WhatsApp

AMT – 6300 – Automotive Preparation Booth with Exhaust System

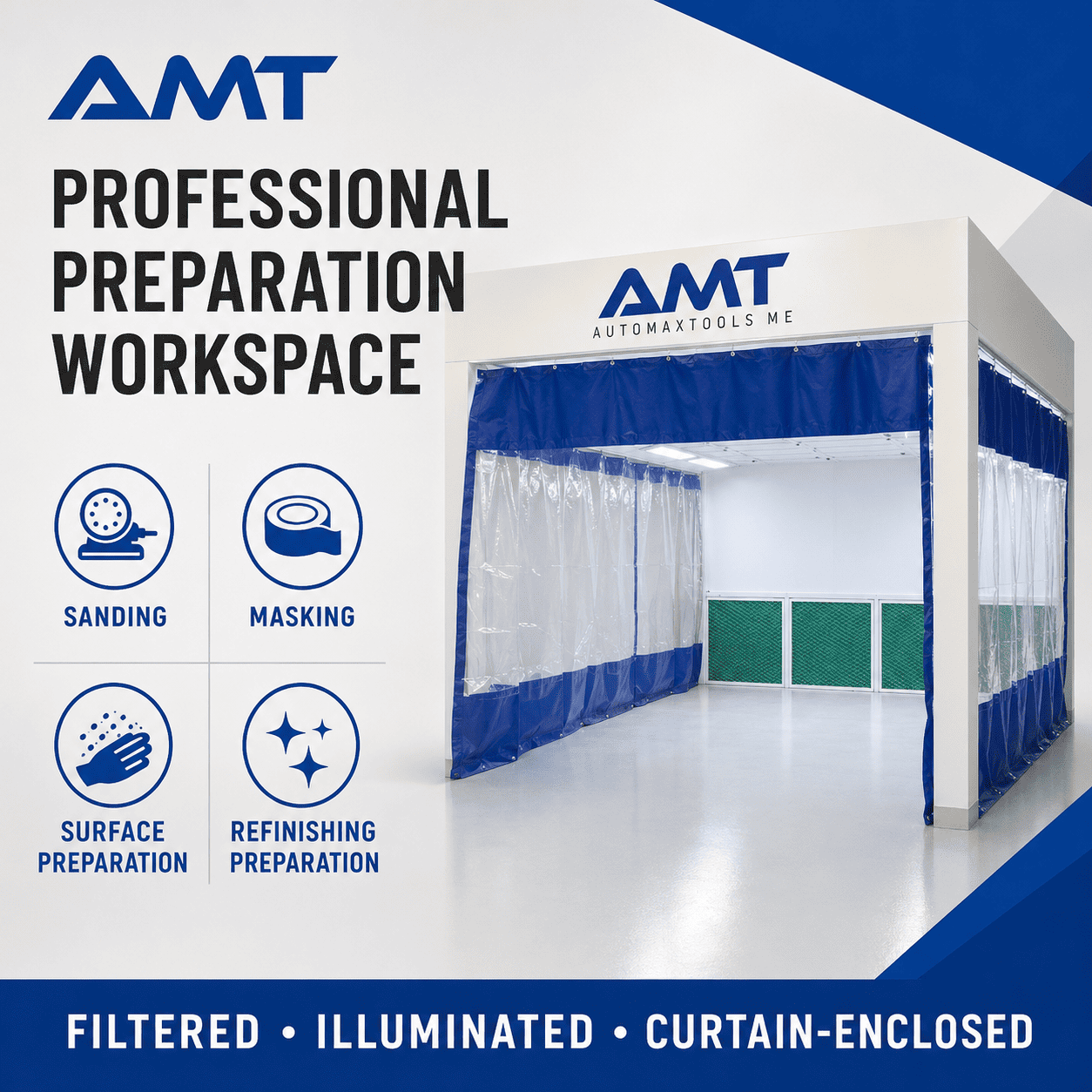

The AMT-6300 Automotive Preparation Booth provides a dedicated working area for automotive body preparation and refinishing operations. It is designed to help workshops organise sanding, masking, surface preparation, priming preparation, and similar body-repair processes within a filtered and mechanically ventilated preparation station.

The main preparation-station structure measures approximately 6300 × 3550 × 3100 mm, with a clear working height of approximately 2550 mm. When the side-mounted fan-cabinet section is included, the engineering layout shows an overall installed length of approximately 7550 mm. The final exhaust-stack height and duct routing depend on the installation site.

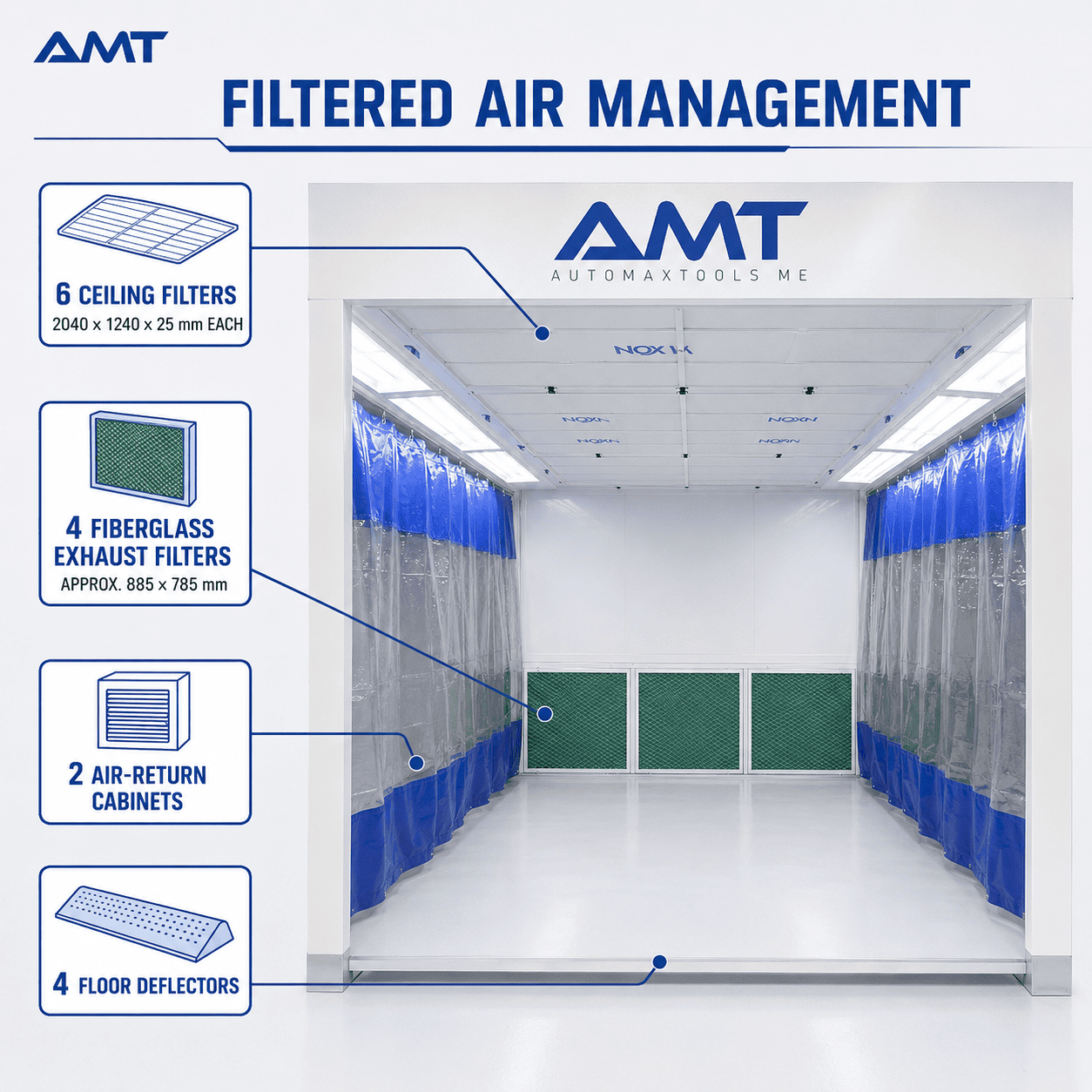

Filtered Preparation Area

  • Six ceiling-filter sections help distribute filtered air throughout the preparation area.
  • Four fiberglass exhaust filters support the extraction and air-return system.
  • Four floor deflectors support the booth’s lower air-management arrangement.
  • Two air-return cabinets are positioned along the preparation station.

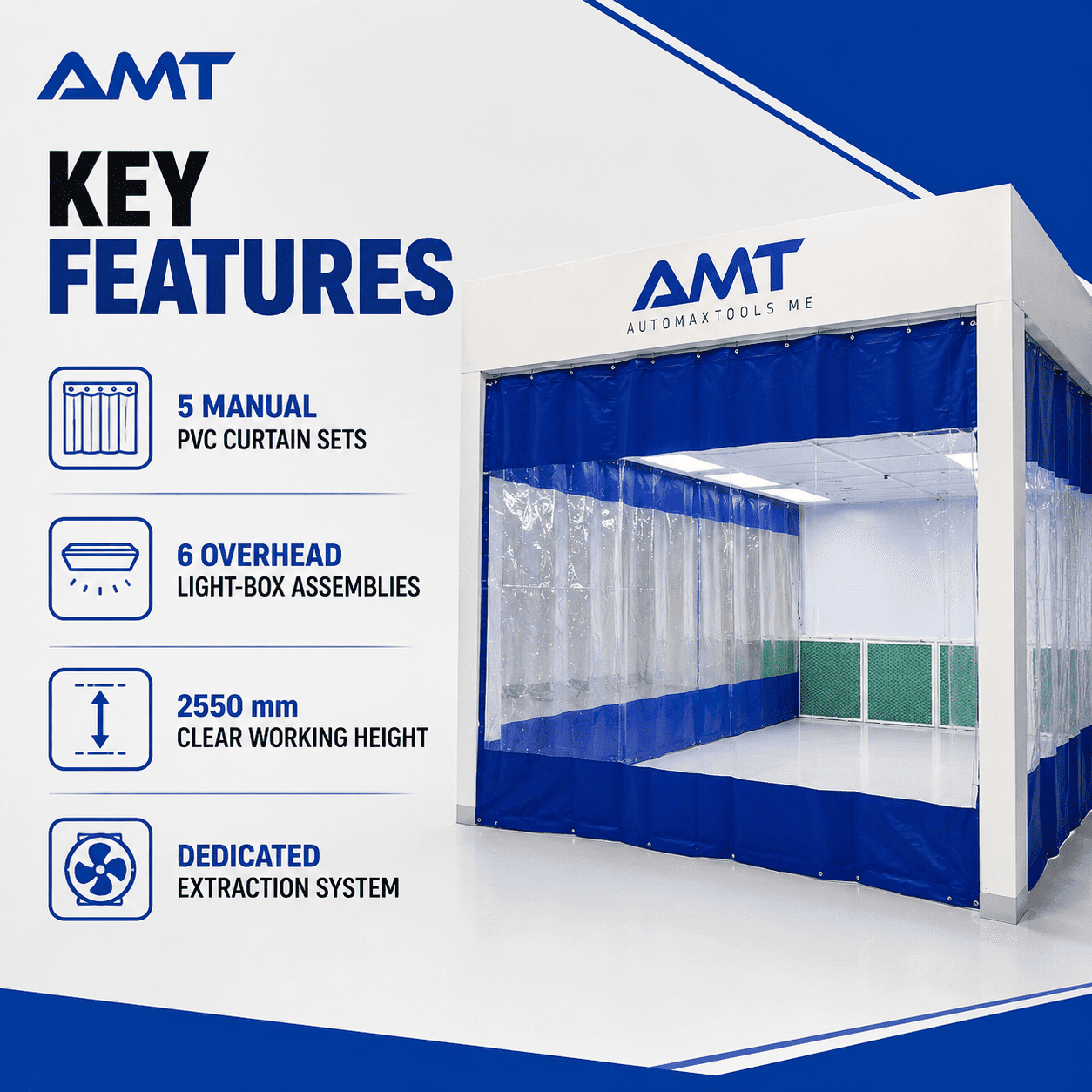

  • Five manually operated PVC curtain sets separate the working area from the surrounding workshop.

Exhaust and Ventilation System

The AMT-6300 uses a dedicated exhaust-fan cabinet powered by a 5.5 kW exhaust fan. The supplied electrical control system is configured for a 380 V, three-phase, 50 Hz electrical supply.

  • One exhaust-fan cabinet measuring approximately 1000 × 1300 × 1950 mm.
  • Two air-return cabinets measuring approximately 2000 × 203 × 950 mm each.
  • Four fiberglass exhaust filters with dedicated inner and outer frames.
  • Primarily 700 × 700 mm exhaust-duct sections with connection components.
  • Dedicated electrical control box for operating the exhaust system.

Lighting and Enclosure

  • Six overhead light-box assemblies with matching covers.
  • Five manually operated PVC curtain sets mounted on aluminium sliding rails.
  • Structural wall panels with a thickness of approximately 50 mm.
  • Ceiling supports, roof brackets, sealing panels, hanging beams, and installation hardware.
  • Galvanised support components and fastening hardware for professional installation.

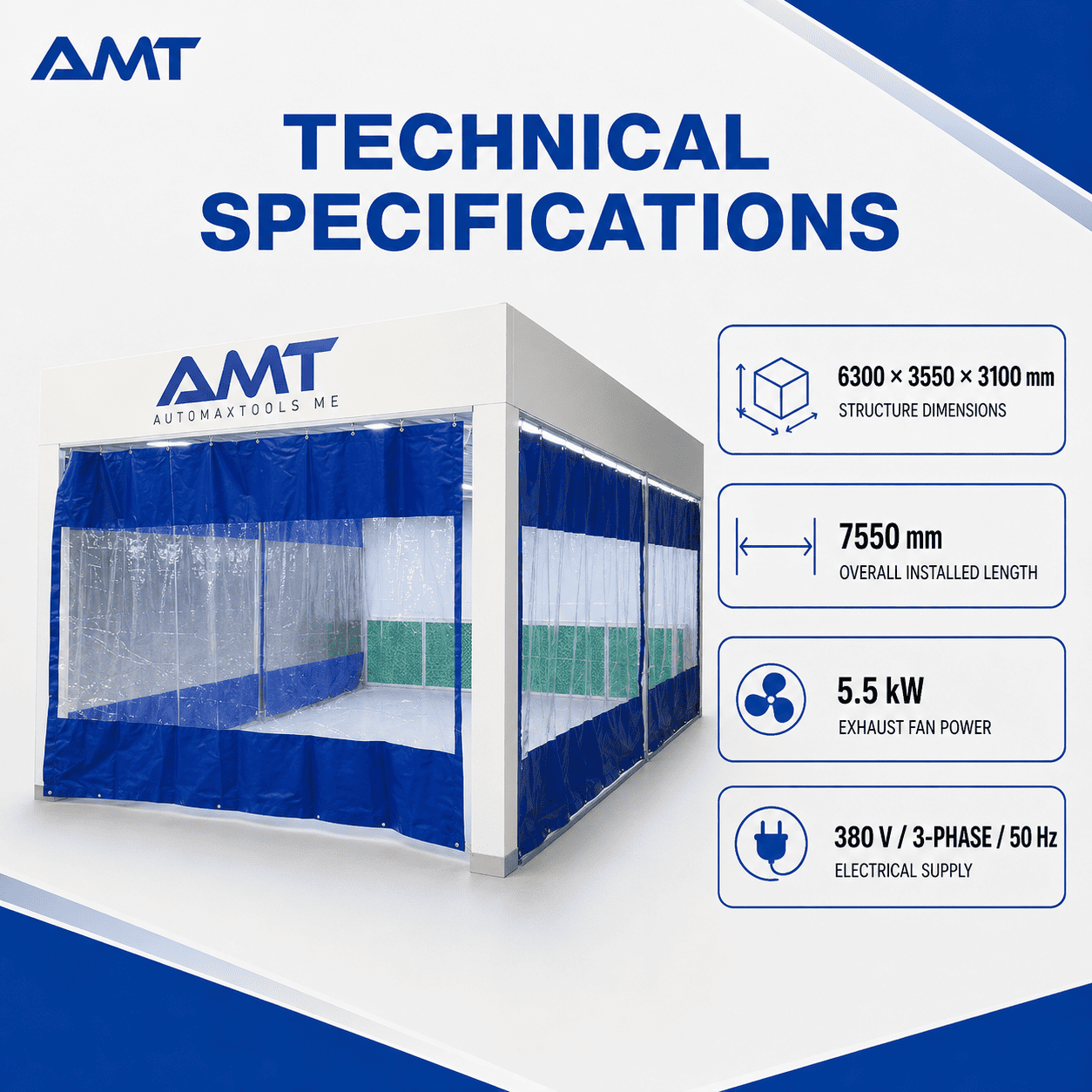

Technical Specifications

SpecificationDetails
BrandAMT
ModelAMT-6300
SKUAMT-6300
Product TypeAutomotive Preparation Booth
Structure DimensionsApproximately 6300 × 3550 × 3100 mm
Overall Installed LengthApproximately 7550 mm including the fan-cabinet section
Clear Working Height2550 mm
Upper Plenum Height550 mm
Exhaust Fan Power5.5 kW
Electrical Supply380 V / 3-phase / 50 Hz
Lighting6 light-box assemblies
Ceiling Filters6 pieces, 2040 × 1240 × 25 mm
Exhaust Filters4 fiberglass filters, approximately 885 × 785 mm
PVC Curtains5 manually operated curtain sets
Exhaust Fan Cabinet1000 × 1300 × 1950 mm
Air-Return Cabinets2 pieces, each approximately 2000 × 203 × 950 mm
Control SystemDedicated electrical control box

Included Main Components

The supplied system includes the preparation-room framework, wall and roof sections, five PVC curtain sets with sliding rails, six lighting assemblies, ceiling filters, fiberglass exhaust filters, floor deflectors, an exhaust-fan cabinet, two air-return cabinets, exhaust ducting, an electrical control box, and the specified installation hardware.

Professional Installation

This preparation booth requires professional installation and connection to a suitable three-phase electrical supply. Final exhaust-duct routing, stack height, workshop clearances, and installation requirements must be confirmed according to the installation site.

    Dimensions755 × 355 × 310 cm
