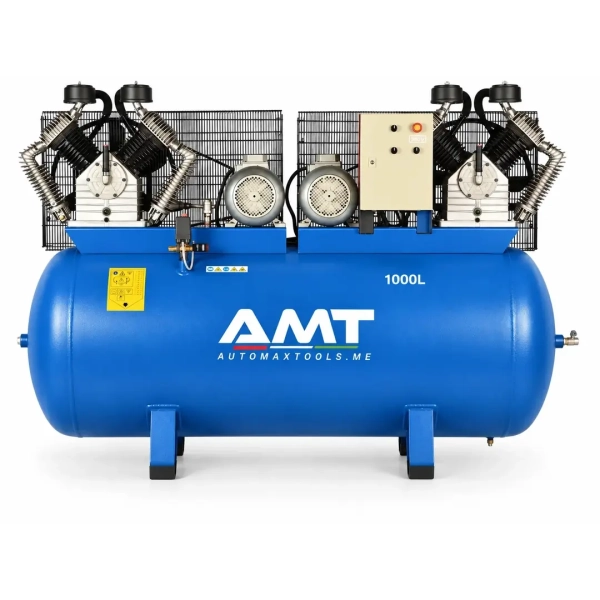

AMT N1000/K60/10 D 1000L Tandem Piston Air Compressor
The AMT N1000/K60/10 D is engineered for workshops and industrial facilities that require a large air reserve and dependable high-volume compressed-air delivery. The system combines a 1000-litre horizontal receiver tank with two Chinook K60 piston pumps and twin 10 HP motors.
With an air displacement of 3490 L/min and a maximum working pressure of 10 bar, this compressor supports demanding workshop equipment and applications that require stable air delivery throughout the working day.
Twin Chinook K60 Pump Configuration
- Two Chinook K60 lubricated piston pumps.
- Two 10 HP motors with a combined rated output of 15 kW.
- 1200 rpm operating speed.
- 3490 L/min air displacement.
- Belt-driven transmission with protective safety guards.
Large 1000-Litre Air Receiver
The large horizontal receiver stores compressed air for applications with fluctuating or continuous demand. It reduces frequent start-stop cycling and provides a stable reserve for multiple compatible workshop air tools and service stations.
Professional Three-Phase Power
- 400 V three-phase electrical supply.
- 50–60 Hz operating frequency.
- Dedicated electrical control box.
- Professional electrical installation is required.
Workshop Applications
- Tyre-service and wheel-care equipment.
- Automotive spray-painting systems.
- Vehicle maintenance and service lines.
- Pneumatic workshop tools.
- General light-industrial compressed-air supply.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMT |
| Model | N1000/K60/10 D |
| Product Type | Tandem piston air compressor |
| Tank Capacity | 1000 L |
| Pump | Chinook K60 × 2 |
| Power | 2 × 10 HP / 2 × 7.5 kW |
| Air Displacement | 3490 L/min |
| Speed | 1200 rpm |
| Maximum Pressure | 10 bar |
| Power Supply | 400 V / 3 Phase / 50–60 Hz |
| Drive System | Belt driven |
| Lubrication | Oil lubricated |
| Dimensions | 2320 × 900 × 1180 mm |
| Weight | 664 kg |
Installation Information
Confirm the available electrical supply, installation space, ventilation, floor capacity and downstream air-treatment requirements before ordering. Installation and commissioning should be completed by qualified electrical and compressed-air technicians.
