Autel IA800 Camera Kit | 6-Camera Optical ADAS Positioning Upgrade | Wheel Clamps & Targets | Standard Calibration Frame Upgrade

Name: Autel IA800 Camera Kit | 6-Camera Optical ADAS Positioning Upgrade | Wheel Clamps & Targets | Standard Calibration Frame Upgrade | Automax Tools
Price: 5127.64 USD
Availability: InStock

Categories: 4Tire Shop Equipment, ADAS & Wheel Alignment, Black Friday Sale, Clearance, Express Delivery Tags: adas, Autel

US$ 5,127.64

Rated 0 out of 5

0 reviews

The Autel IA800 Camera Kit is the optical positioning hardware used to upgrade a compatible Autel Standard ADAS Calibration Frame to the intelligent IA800 workflow. The IA800 system uses six high-resolution cameras and wheel-mounted targets to determine frame centering and vehicle distance without traditional mechanical measurement.

The camera kit is intended for professional ADAS calibration shops that already have or are building an Autel calibration-frame setup. Optical positioning reduces manual tape-measure, plumb-bob and string procedures while improving repeatability.

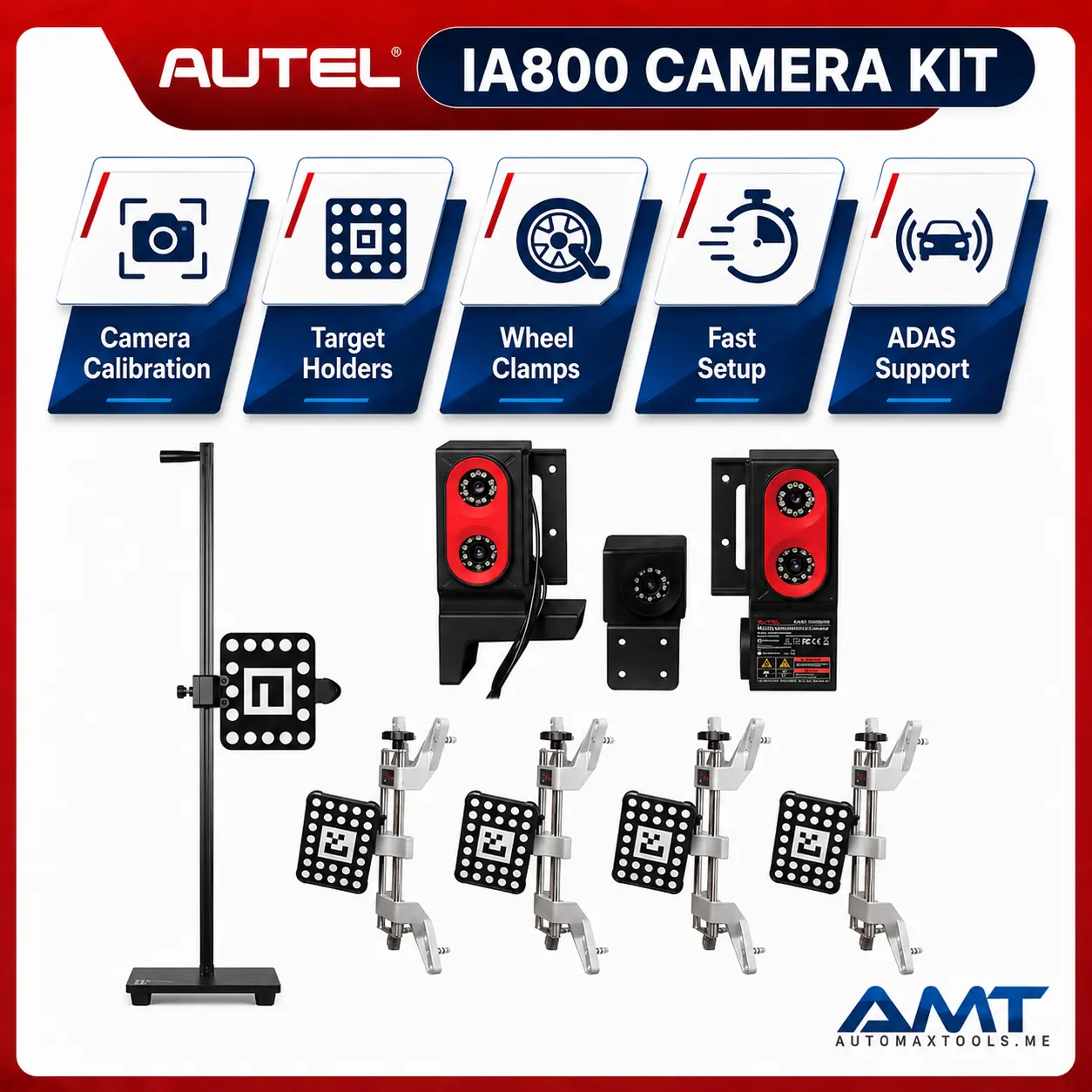

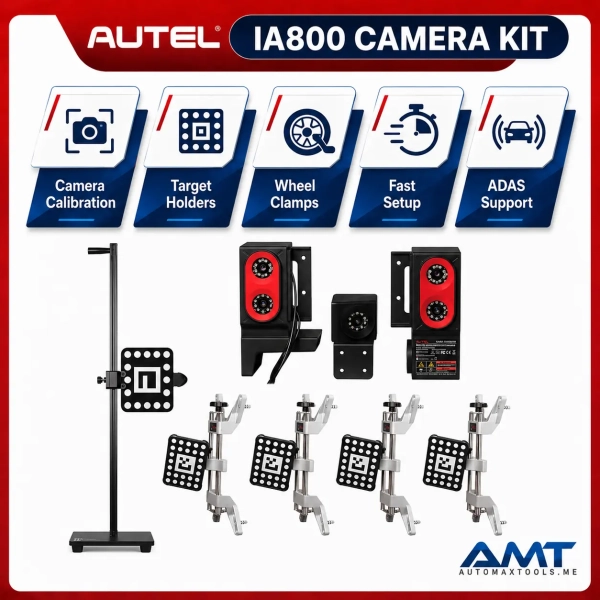

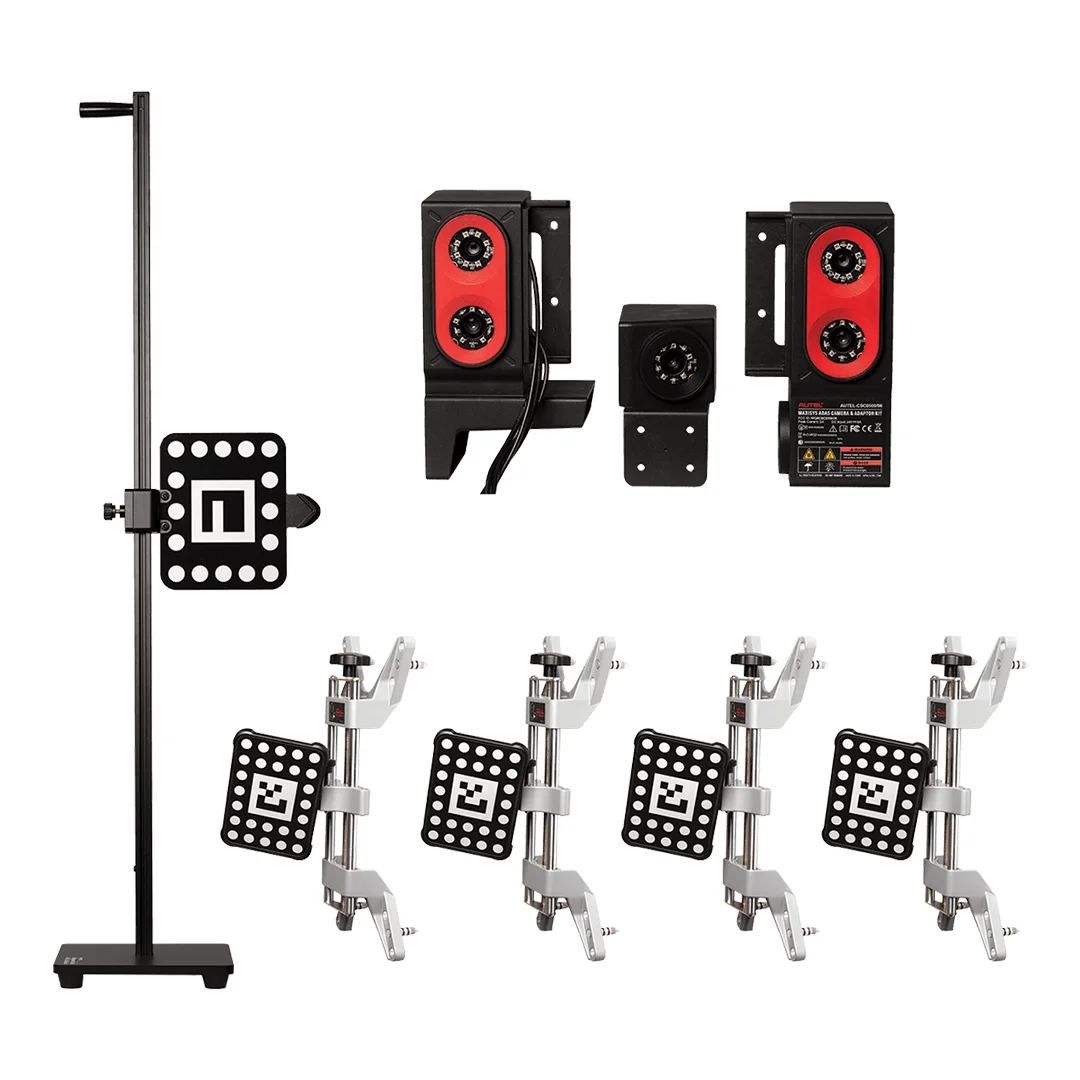

Actual package contents can vary by kit version; the Automax listing includes the IA800 camera / target hardware shown in the supplied package image.

Specification	IA800 Camera Kit
Product Type	ADAS Optical Positioning Upgrade Hardware
System	MaxiSYS IA800
Positioning Cameras	6 High-Resolution Cameras – Complete IA800 System
Positioning Method	Optical 3D Measurement
Frame Compatibility	Autel Standard ADAS Calibration Frame
Wheel Measurement	Wheel Clamp / Camera Targets
Vehicle Distance	Optical Recognition
Frame Centering	Optical Recognition
Mechanical Measurement	Significantly Reduced / Not Required for Optical Positioning
ADAS Applications	Camera, Radar, LiDAR & Night Vision – With Applicable Targets
Host Tablet / Software	Compatible Autel MaxiSYS ADAS Platform Required
Professional Installation	Recommended
Software Updates	2 Years Included – Compatible Host Platform
Warranty	1 Year Limited Warranty

Autel IA800 Camera Kit Official / Reference Information

View Product Information

1 Year Warranty. 2 Year Free Software Updates.

IP Restriction (works only in India, Middle East and Africa).

Order on WhatsApp

In stock

Description
Customer Reviews (0)

Autel IA800 Camera Kit – Optical ADAS Frame Positioning Upgrade

The Autel IA800 Camera Kit is designed to add optical positioning capability to a compatible Autel Standard ADAS Calibration Frame.
The complete IA800 concept uses six high-resolution cameras to measure the relationship between the vehicle, wheel targets and calibration frame.

Optical 3D Positioning

The IA800 workflow helps determine frame centering and vehicle distance through optical measurement instead of relying on repeated manual measurements.

3D wheel-target recognition
Frame centerline positioning
Vehicle distance measurement
Fast frame setup
Improved repeatability

Wheel Clamps & Targets

Wheel-mounted camera targets form part of the IA800 measurement workflow. The camera hardware tracks these targets to calculate vehicle position.

Works with the Autel Standard ADAS Frame

IA800 is designed as an upgrade path for the Autel Standard Calibration Frame, helping existing ADAS workshops move to optical positioning.

ADAS Calibration Coverage

With compatible Autel software and the correct calibration targets, the IA800 system supports camera, radar, LiDAR and night-vision calibration procedures.

Warranty, Software Package & Regional Version

The Automax Tools IMEA package for Autel IA800 Camera Kit includes 2 years of software updates/support where applicable and a 1-year limited warranty. For chargers, calibration hardware, accessories and bundle components, software entitlement applies to the compatible Autel host platform or connected software where applicable.
Regional restriction: this Automax Tools IMEA listing is intended for use in India, the Middle East and Africa.

Ideal for Professional Use

The Autel IA800 Camera Kit is well suited for:

ADAS calibration centers
Collision repair shops
Glass replacement centers
Alignment facilities
Autel Standard Frame owners

Why Choose the Autel IA800 Camera Kit?

The IA800 Camera Kit improves calibration-bay efficiency by reducing manual positioning work and bringing optical measurement to the Autel Standard ADAS Frame.
Vehicle coverage, charging output, calibration procedures, programming functions and included accessories can vary by vehicle, installation, software version, electrical configuration and region.
