The Autel MaxiAP AP200M is a compact Bluetooth OBDII adapter that turns a compatible iOS or Android smartphone into an all-system diagnostic and maintenance tool. It is designed for vehicle owners, mobile technicians and workshops that want portable diagnostics without carrying a dedicated scan tablet.

The AP200M can diagnose supported electronic control modules, read and clear DTCs, display live data and perform common maintenance functions including Oil Service Reset, Battery Reset, Electronic Parking Brake relearn and Steering Angle Sensor relearn.

The adapter communicates over Bluetooth 4.2 dual-mode at 2.4GHz and is powered directly from the vehicle’s diagnostic port. Brand and function availability are managed through the Autel MaxiAP mobile application and can vary by software package.

SpecificationMaxiAP AP200M
Product TypeBluetooth OBD2 Smartphone Diagnostic Adapter
ModelMaxiAP AP200M
Host DeviceCompatible iOS / Android Smartphone or Tablet
CommunicationBluetooth 4.2 Dual-Mode
Wireless Frequency2.4GHz
Input Voltage9VDC to 26VDC
Supply Current100mA @ 12V
All-System DiagnosticsSupported – Vehicle / App Coverage Dependent
Read / Clear DTCsSupported
Live DataSupported
Oil Service ResetSupported
Battery Reset / BMSSupported
EPB RelearnSupported
SAS RelearnSupported
Vehicle CoverageUS, Asian & European Vehicles, 1996+ Where Supported
Dimensions59 Γ— 44 Γ— 21.5mm
WeightApprox. 32.1g
Software Updates2 Years Included – Automax Tools IMEA Package
Warranty1 Year Limited Warranty



Autel MaxiAP AP200M Official Information

View Official / Reference Information for Autel MaxiAP AP200M


Autel MaxiAP AP200M UAE Automax Tools


1 Year Warranty. 2 Year Free Software Updates.

IP Restriction (works only in India, Middle East and Africa).

Order on WhatsApp

Out of stock

Autel MaxiAP AP200M – Smartphone All-System Diagnostic Adapter

The Autel MaxiAP AP200M is a pocket-size Bluetooth diagnostic interface that works with the MaxiAP application on compatible mobile devices.
It provides a convenient way to perform all-system fault diagnosis and common maintenance services without purchasing a separate tablet scanner.

All-System Vehicle Diagnostics

On supported vehicles and software packages, the AP200M can access available electronic modules for diagnosis.

  • Read and clear DTCs
  • View ECU information
  • Display live data
  • Check supported system status
  • Vehicle-specific diagnostic functions

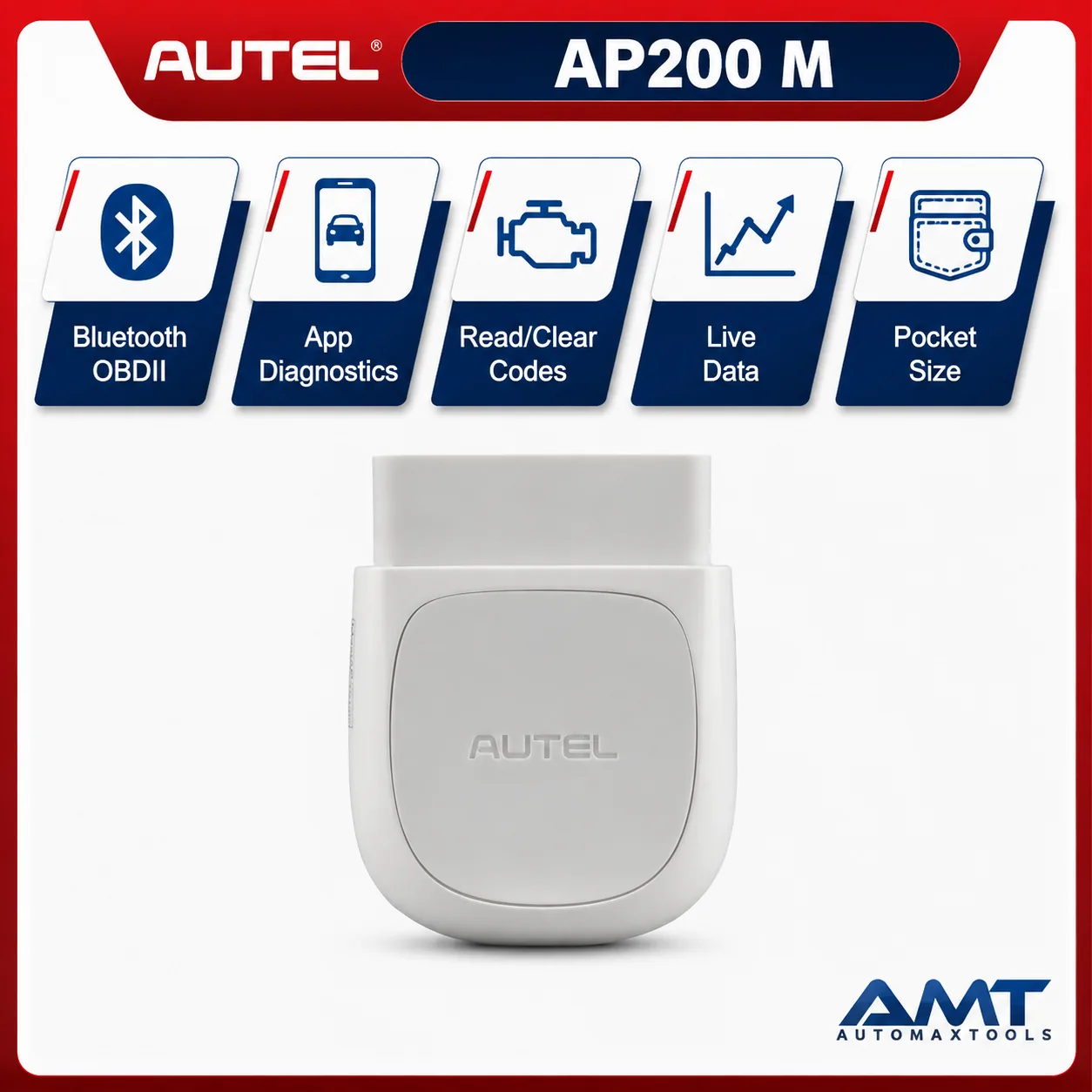

Autel MaxiAP AP200M Bluetooth diagnostic adapter

Common Maintenance Services

Autel lists several frequently required maintenance functions for the AP200M.

  • Oil Service Reset
  • Battery Reset / Registration
  • Electronic Parking Brake relearn
  • Steering Angle Sensor relearn
  • Additional vehicle-dependent service functions through the app

Bluetooth Smartphone Operation

The adapter communicates with a compatible smartphone or tablet over Bluetooth 4.2 dual-mode, allowing the mobile device to serve as the display and user interface.

Compact OBDII Design

At approximately 59 Γ— 44 Γ— 21.5mm and 32.1g, the AP200M can remain in a technician’s toolbox, glovebox or mobile service kit without taking up space.

Vehicle-Powered Operation

The AP200M is powered from the vehicle diagnostic connector and supports an input range from 9VDC to 26VDC.

2 Year Software Updates, Warranty & Regional Version

This Autel MaxiAP AP200M package supplied by Automax Tools includes 2 years of software updates and a 1-year limited warranty.
IMEA regional restriction: this listing is intended for use in India, the Middle East and Africa.

Ideal for Professional Automotive Use

The Autel MaxiAP AP200M is well suited for:

  • Vehicle owners
  • Mobile mechanics
  • Used-car inspection
  • DIY maintenance
  • Technicians needing a pocket backup scanner

Why Choose the Autel MaxiAP AP200M?

The AP200M is a convenient portable option for users who want Autel all-system diagnostics and common maintenance functions on a smartphone instead of a dedicated scan tablet.
Function availability, vehicle coverage and supported procedures can vary by manufacturer, vehicle model, model year, control module, software version and region.
View Autel MaxiAP AP200M Product Information

Contact Automax Tools UAE for Autel MaxiAP AP200M

    Weight1 kg
    Dimensions18 × 10 × 25 cm

    Specification

    ItemDescription
    CommunicationsBL 4.2 Dual-Mode
    Wireless Frequency2.4 GHz
    Input Voltage Range9 VDC to 26 VDC
    Supply Current100 mA@12 V
    Sleep Mode Current3 mA@12 V
    Operating Temp.0Β°C to 50Β°C
    Storage Temp.-20Β°C to 70Β°C
    Dimensions (L*W*H)59 mm (2.32”) * 44 mm (1.73”) * 21.5mm (0.85”)
    Weight32.1g (0.07 lb.)
