MaxiCharger AC Ultra

(1 reviews)

Autel EV MaxiCharger AC Ultra Dual Port Electric Vehicle Charger – 19.2kW Fast Charging, ISO 15118 Plug & Charge, Smart Features, Commercial-Grade Design, Weather Resistant, Autel Charger Cloud, and 36-Month Warranty

The Fastest AC Charger for 2 Vehicles

Retailer | Commercial Building | Parking Lot | Residential

  • Fast and Efficient
  • Best-Value Design
  • Smart Charging
  • FeatureSpecification
    Charging Power2*19.2kW (Adjustable from 6A to 80A)
    Voltage Compatibility208V±15%, 240V±15%, 60Hz
    Network TypeL1/N+PE, L1/L2/PE
    Input CordHardwired
    Connector TypeSAE J1772, 7.5m (25’) or 5m
    Ground Fault Detection20mA CCID
    ProtectionOvercurrent, Overvoltage, Undervoltage, Integrated Surge Protection
    User InterfaceLED/APP/LCD (8 inch, 1280*720 touch screen)
    Dimensions (H×W×D)625×320×170mm
    Enclosure RatingNEMA 3R
    Operating Altitude2000m
    Operating Temperature Range-40℃~+50℃
    Storage Temperature Range-40℃~+85℃
    MountingWall or floor using a pedestal
    ConnectivityBluetooth, Wi-Fi, Ethernet, 4G, RS485
    Communication ProtocolsOCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)
    User AuthenticationAPP, RFID Card, Credit Cards (Optional)
    Software UpdateOTA updates via web portal
    Certifications and StandardsUL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916
    EMC ComplianceFCC 15 Class B
    CertificationsEnergy Star, OpenADR 2.0b
    Warranty36 months, warranty extension possible

Order Through

Order on WhatsApp

Description

MaxiCharger AC Ultra Fast and Efficient Dual Port Charging

Experience exceptional EV charging with Autel’s Dual Port Electric Vehicle Charger. Boasting an industry-leading 19.2kW per port, this charger sets the standard for speed, simultaneously fast-charging two vehicles and delivering an impressive 75 miles of range within just 60 minutes.

MaxiCharger AC Ultra Hassle-Free Charging with ISO 15118 Plug & Charge

Designed for seamless charging experiences, our system incorporates ISO 15118 Plug & Charge technology, ensuring a hassle-free connection for your electric vehicles. Enjoy the convenience of a straightforward and user-friendly charging process.

MaxiCharger Best-Value Design for Commercial Deployment

Tailored for commercial use, our rugged charger is suitable for wall or floor mounting. The one-piece construction ensures easy installation, reducing costs and providing a faster return on investment. Ideal for businesses looking for a reliable and cost-effective charging solution.

MaxiCharger Smart Charging for Future-Proof Solutions

Equipped with OCPP 1.6 and 2.0.1 compliance, our charger adapts its power usage for optimal charging today and in the future. This intelligent functionality not only enhances efficiency but also reduces capital investment in power capacity, offering a future-proof solution.

Autel EV Comprehensive Service and Support

Our commitment to your satisfaction extends beyond the product. Benefit from comprehensive support services, including technical assistance, installation support, and a robust warranty. Utilize the Autel Charger Cloud for efficient charging management, tracking, and optimization.

MaxiCharger Intelligent Operation with Autel Charger Cloud

  • Cloud-Based Smart Charging: Optimize charging remotely with our intelligent cloud-based system.
  • Remote Maintenance Monitoring: Stay informed about your charger’s performance with remote monitoring.
  • Smart Advertising: Engage users during charging with an 8-inch HD advertising screen.

MaxiCharger Worry-Free Service Package

Enjoy worry-free service with our comprehensive package, covering on-site consulting, installation, technical support, and training. We’re dedicated to ensuring your charging experience is seamless and trouble-free.

Autel EV Versatile Product Features

  • Cable Management: Keep your operation neat with effective cable management.
  • WiFi Hotspot Sharing: Reduce infrastructure costs by running up to 16 units off one WiFi connection.
  • Power Sharing: Intelligently distribute maximum charging power between two ports, minimizing charging time.
  • OCPP 1.6/2.0.1: Stay compliant with industry standards.
  • One-piece Pedestal Housing Combination: Streamlined design for easy deployment.

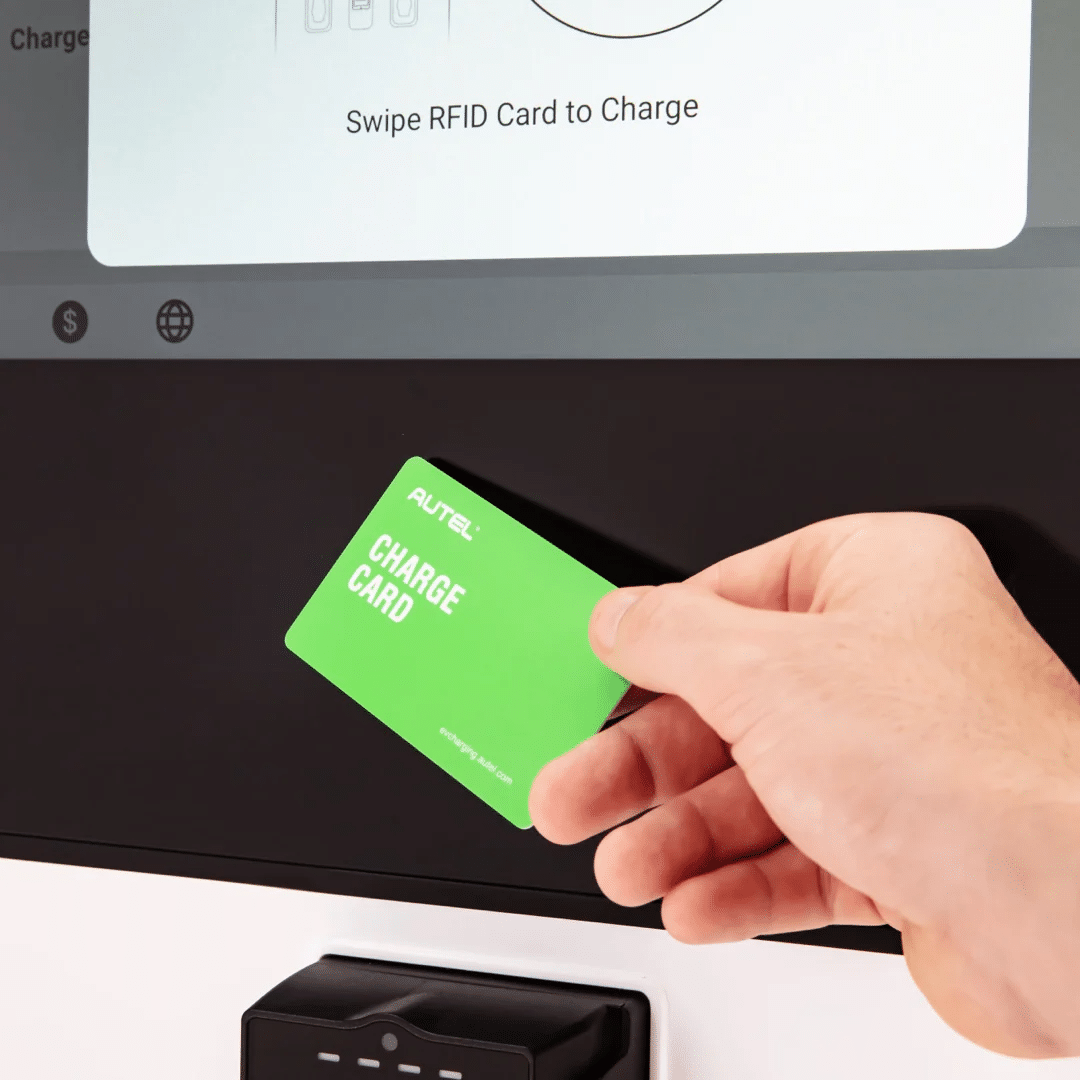

  • User Authentication Options: Choose from APP, RFID Card, Credit Card, or Mobile Payment.
  • 8-inch HD Advertising Screen: Enhance user engagement.
  • Weather Resistant: Built to withstand diverse weather conditions.

Technical Specifications

  • Input/Output Power: 2*19.2kW (Adjustable from 6A to 80A)
  • Input/Output Voltage: 208V±15%, 240V±15%, 60Hz
  • Network Type: L1/N+PE, L1/L2/PE
  • Dimensions: 625×320×170mm
  • User Interface: LED/APP/LCD (8 inch, 1280*720 touch screen)
  • Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, RS485

Autel EV Certification and Standards

  • Safety and Compliance: UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916
  • EMC Compliance: FCC 15 Class B
  • Certification: Energy Star, OpenADR 2.0b
  • Warranty: 36 months, extendable for additional peace of mind.

Transform your EV charging experience with Autel’s Dual Port Electric Vehicle Charger – the ultimate combination of speed, efficiency, and intelligence.
