Autel MaxiSYS ADAS IA600 Portable 3D Camera Calibration System | Approx. 1-Minute Positioning | Foldable Frame | MaxiSYS ADAS Compatible

Name: Autel MaxiSYS ADAS IA600 Portable 3D Camera Calibration System | Approx. 1-Minute Positioning | Foldable Frame | MaxiSYS ADAS Compatible | Automax Tools
SKU: ia-600
Price: 10450.27 USD
Availability: InStock

Category: adas-wheel-alignment SKU: ia-600

US$ 10,450.27 ~~US$ 10,835.56~~

Rated 0 out of 5

0 reviews

The Autel MaxiSYS ADAS IA600 is a portable 3D camera-based ADAS calibration system designed for fast frame positioning and repeatable workshop setup. Its intelligent camera-positioning workflow aligns the frame to the vehicle thrust line and can complete the placement process in approximately one minute under suitable workshop conditions.

The IA600 uses a foldable, modular calibration frame with adjustable upper and lower crossbeams, helping workshops save space and move the system between bays. Step-by-step graphical guidance supports the technician through positioning and calibration preparation.

The system is intended for professional ADAS, collision, wheel-alignment and glass-replacement workshops and works with compatible Autel MaxiSYS ADAS tablets / software. Package contents and calibration targets vary by configuration.

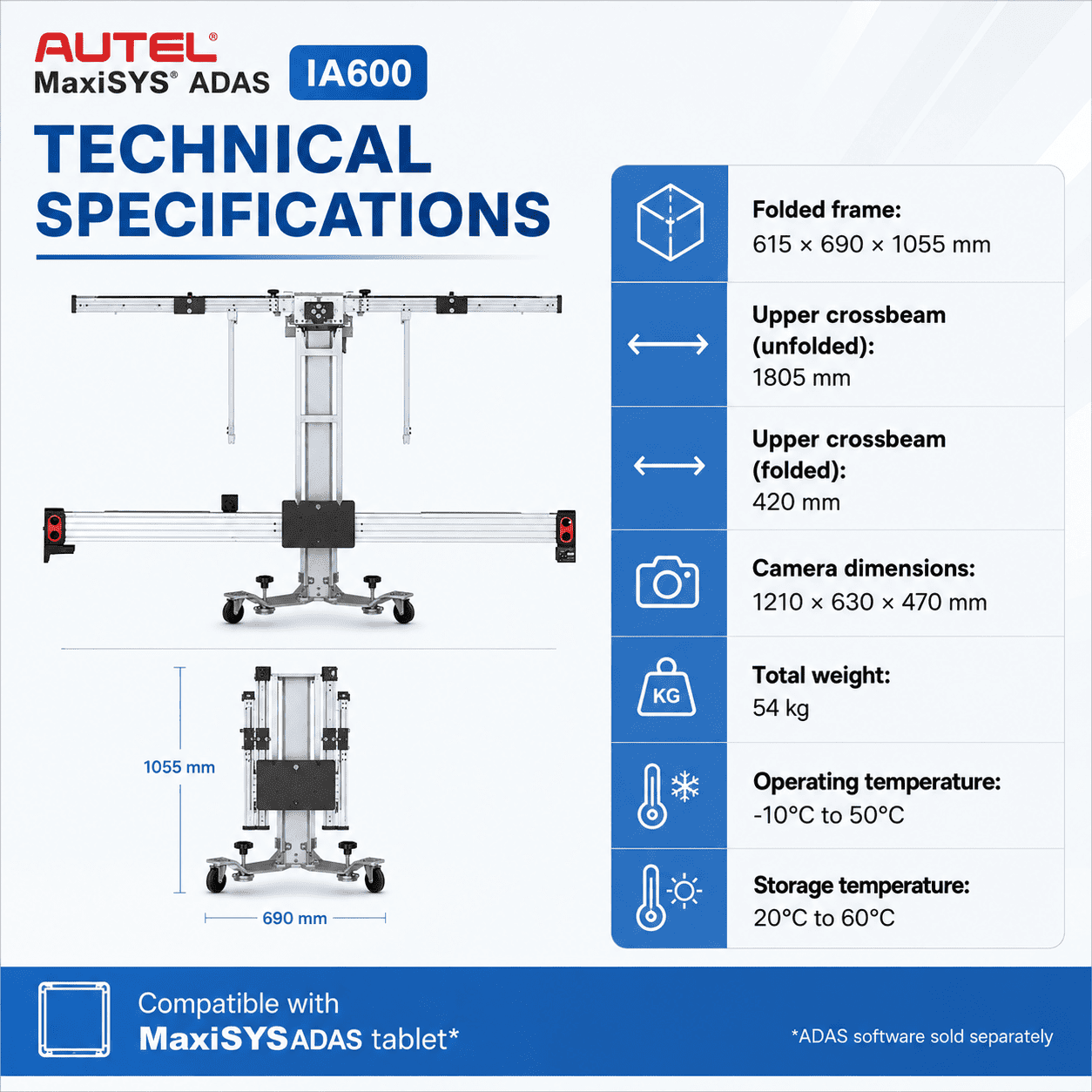

Specification	MaxiSYS ADAS IA600
Product Type	Portable 3D Camera ADAS Calibration System
Model	MaxiSYS ADAS IA600
Positioning Method	3D Camera-Based Vehicle / Frame Positioning
Typical Positioning Time	Approx. 1 Minute – Conditions Dependent
Vehicle Reference	Vehicle Thrust Line
Calibration Frame – Folded	615 × 690 × 1,055 mm
Upper Crossbeam – Unfolded	1,805 mm
Upper Crossbeam – Folded	420 mm
Lower Crossbeam Length	2,767 mm
Calibration Frame Height Range	1,055–1,755 mm
Upper Crossbeam Height Range	1,000–1,700 mm
Lower Crossbeam Height Range	300–950 mm
Camera Assembly Dimensions	1,210 × 630 × 470 mm
Total Weight	Approx. 54kg
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Compatible Platform	Autel MaxiSYS ADAS Tablet / Software – Package Dependent
Portable / Foldable	Yes
Software Updates	2 Years Included – Automax Tools IMEA Package
Warranty	1 Year Limited Warranty

Autel MaxiSYS ADAS IA600 Official / Reference Information

View Product Information

1 Year Warranty. 2 Year Free Software Updates.

IP Restriction (works only in India, Middle East and Africa).

Order on WhatsApp

Only 1 left in stock

Description
Customer Reviews (0)

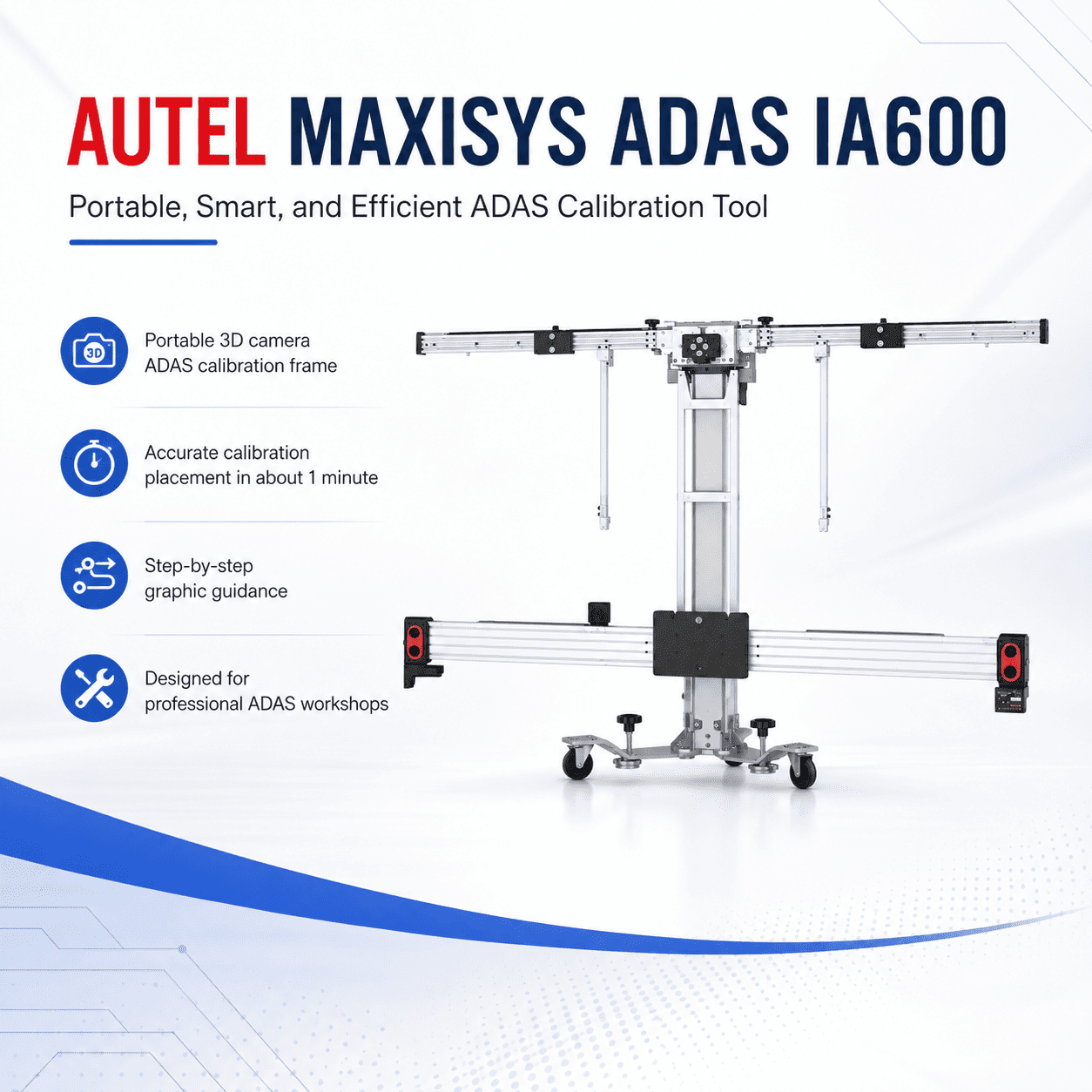

Autel MaxiSYS ADAS IA600 – Portable 3D Camera Calibration Frame

The Autel MaxiSYS ADAS IA600 is designed for workshops that need accurate ADAS calibration positioning without dedicating a large permanent bay to a fixed frame.

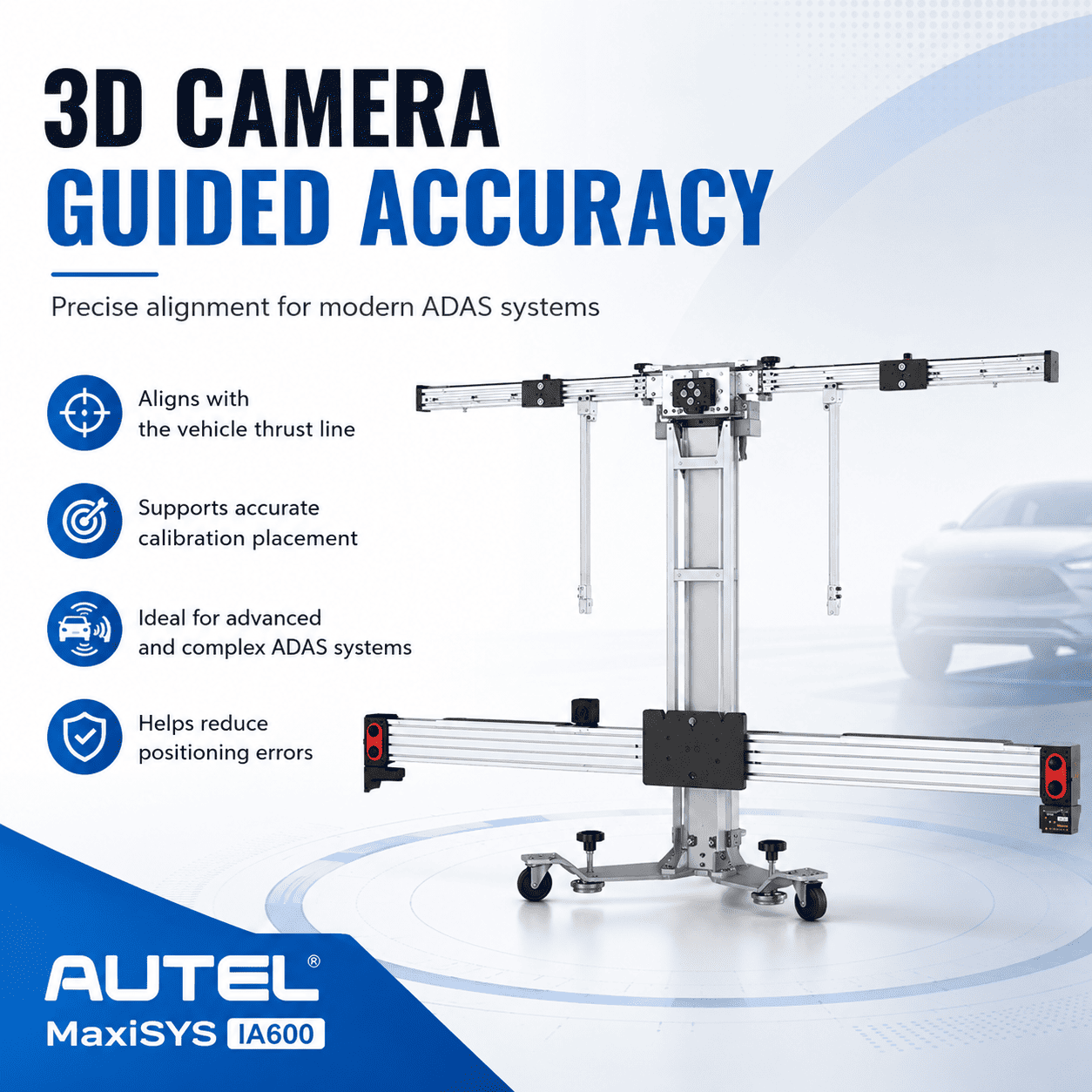

Its 3D camera-based positioning system helps align the frame to the vehicle thrust line quickly and repeatably.

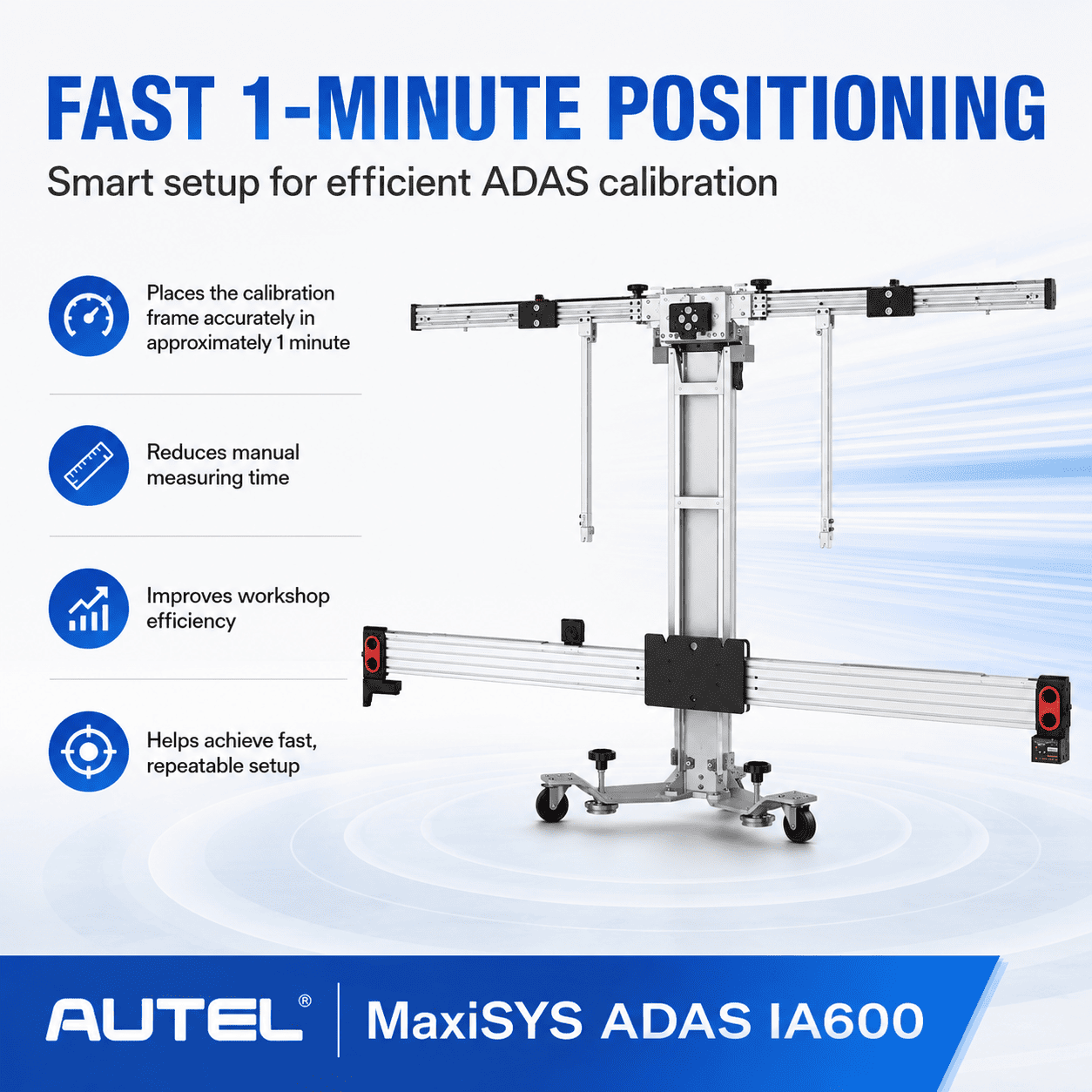

Approx. 1-Minute Frame Positioning

Under suitable workshop conditions, the intelligent camera-positioning workflow can complete frame placement in approximately one minute, reducing manual measurement and repeated repositioning.

Camera-based vehicle positioning
Vehicle thrust-line reference
Fast frame centering
Reduced manual measurement
Step-by-step graphic guidance

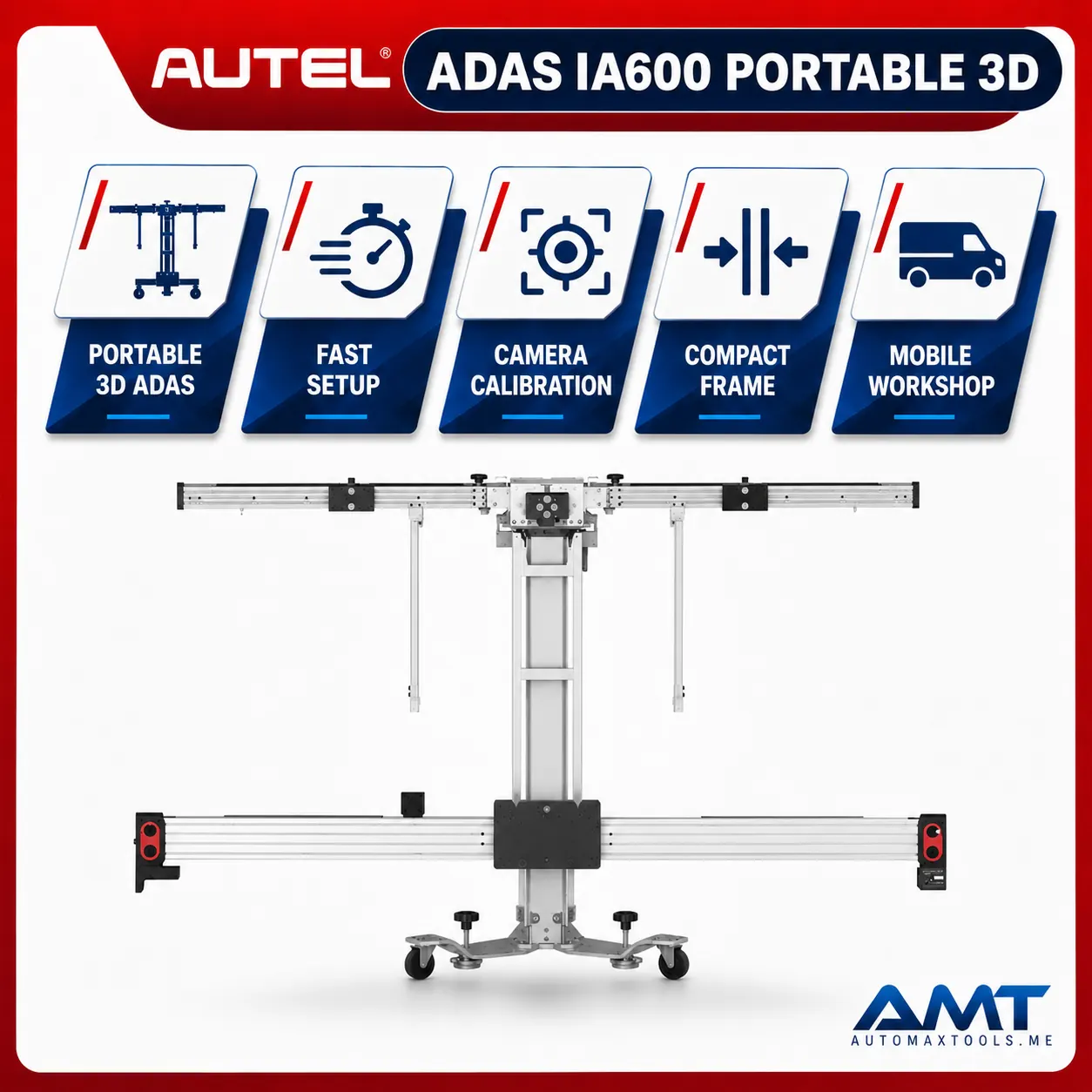

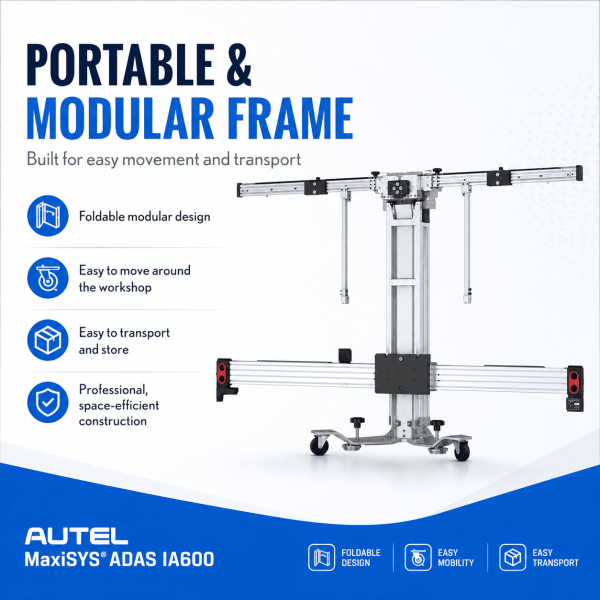

Portable & Foldable Modular Design

The upper crossbeam folds from 1,805 mm working length to approximately 420 mm, helping the system fit more easily into workshop storage and mobile service environments.

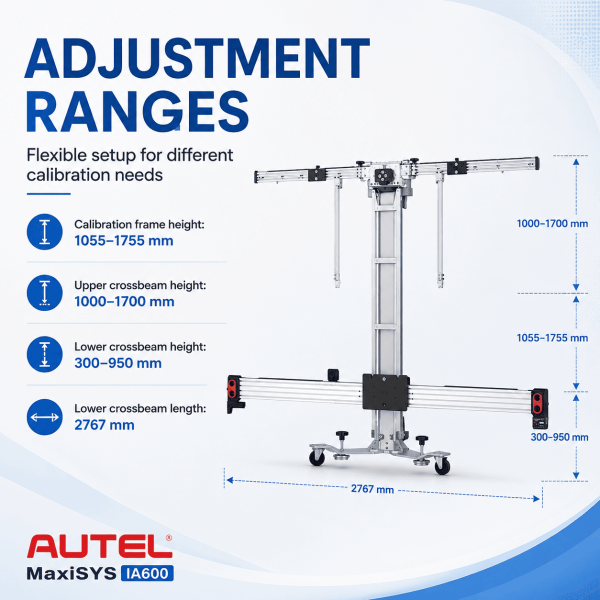

Adjustable Calibration Geometry

The frame and crossbeams provide multiple height ranges to accommodate different target positions and vehicle calibration procedures.

Frame height: 1,055–1,755 mm
Upper crossbeam height: 1,000–1,700 mm
Lower crossbeam height: 300–950 mm
Lower crossbeam length: 2,767 mm

Guided ADAS Calibration Workflow

Compatible Autel MaxiSYS ADAS software provides step-by-step instructions for vehicle preparation, frame placement, target positioning and calibration.

Professional Workshop Applications

The IA600 is suitable for:

ADAS calibration centres
Collision repair workshops
Wheel-alignment centres
Vehicle dealerships
Windshield replacement facilities
Mobile / multi-bay calibration operations

Package Configuration Notice

The IA600 frame, tablet, ADAS software activation, camera hardware and vehicle-specific calibration targets may be included or sold separately depending on package. Confirm the exact Automax Tools configuration before ordering.

Warranty, Software Package & Regional Version

The Automax Tools IMEA package for Autel MaxiSYS ADAS IA600 includes 2 years of software updates/support where applicable and a 1-year limited warranty. Where the product is calibration hardware, battery-service equipment or a scope accessory, software entitlement applies to the compatible Autel tablet / host platform when applicable.
Regional restriction: this Automax Tools IMEA listing is intended for use in India, the Middle East and Africa.

Ideal for Professional Use

The Autel MaxiSYS ADAS IA600 is well suited for:

ADAS calibration centres
Collision repair
Glass replacement
Wheel alignment
Mobile calibration technicians

Why Choose the Autel MaxiSYS ADAS IA600?

The IA600 combines portable construction, 3D camera positioning and guided calibration setup for workshops that want accurate ADAS work without a permanently installed frame.
Vehicle coverage, supported functions, calibration procedures and package contents can vary by vehicle, software version, region and selected configuration.
