Autel MaxiSYS MSOAK Oscilloscope Accessories Kit | MS919S2 / Ultra S2 / MS919 / Ultra / MP408 | 65A & 650A Current Clamps

Categories: ,

AED 800.00

0 reviews

The Autel MaxiSYS MSOAK is a professional oscilloscope accessory kit for technicians performing automotive electrical waveform and current testing. It is compatible with the MaxiFlash VCMI used with MaxiSys Ultra S2, MS919 S2, Ultra and MS919, and it can also be used with the MaxiScope MP408 4-channel oscilloscope.

The kit includes a 65A AC/DC current clamp, 650A AC/DC current clamp, Coil-on-Plug probe, two HT extension leads, two battery clips and a blow-molded carrying case. MSOAK expands the measurement capability of compatible Autel diagnostic systems for current analysis, ignition waveform testing, relative compression and other electrical diagnostic procedures.

SpecificationMaxiSYS MSOAK Oscilloscope Accessories Kit
Product TypeOscilloscope Accessory Kit
ModelMaxiSYS MSOAK
Compatible VCMI ToolsMaxiSys Ultra S2, MS919 S2, Ultra & MS919
Compatible OscilloscopeMaxiScope MP408
65A Current ClampIncluded
650A Current ClampIncluded
Coil-on-Plug ProbeIncluded
HT Extension Leads2 Included
Battery Clips2 Included
Carrying CaseBlow-Molded Case Included
Primary UseAutomotive Waveform & Current Testing
Ignition TestingSupported with COP Probe
Relative CompressionSupported with Compatible Scope Workflow
Standalone OscilloscopeNo – Requires Compatible VCMI / MP408
Software Updates2 Years Included – Compatible Host Platform
Warranty1 Year Limited Warranty

  Autel MaxiSYS MSOAK Oscilloscope Accessories Kit Official / Reference Information View Product Information Autel MaxiSYS MSOAK Oscilloscope Accessories Kit UAE Automax Tools

1 Year Warranty. 2 Year Free Software Updates.

IP Restriction (works only in India, Middle East and Africa).

Order on WhatsApp

In stock

Buy Now

Autel MaxiSYS MSOAK – Professional Oscilloscope Accessory Kit

The Autel MaxiSYS MSOAK is a dedicated set of probes and current clamps for advanced electrical diagnostics with compatible Autel oscilloscope platforms. It is designed for technicians using the MaxiFlash VCMI or MP408 who need more complete current, ignition and waveform test capability.

Compatible Autel Platforms

Autel lists MSOAK compatibility with:

  • MaxiSys Ultra S2
  • MaxiSys MS919 S2
  • MaxiSys Ultra
  • MaxiSys MS919
  • MaxiScope MP408

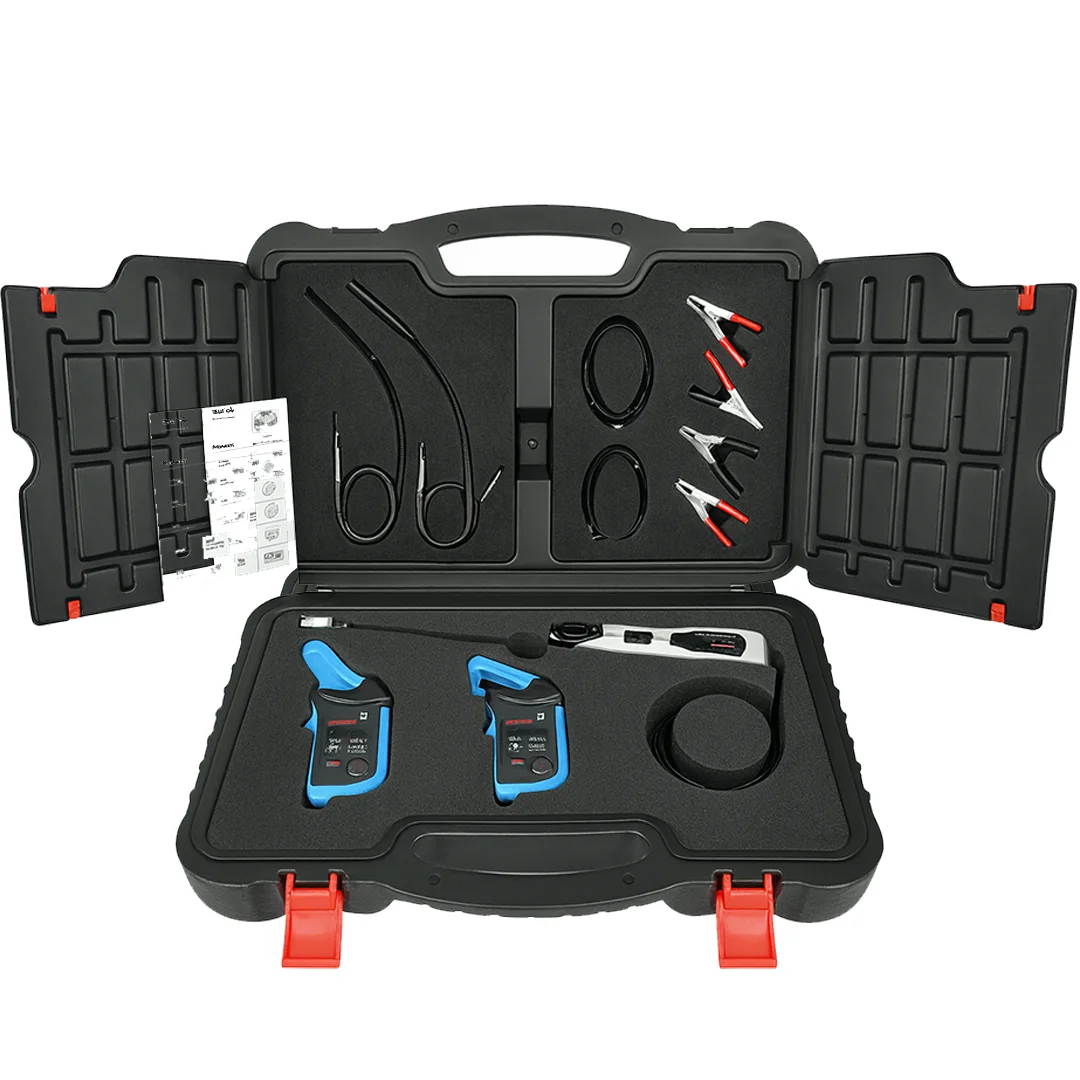

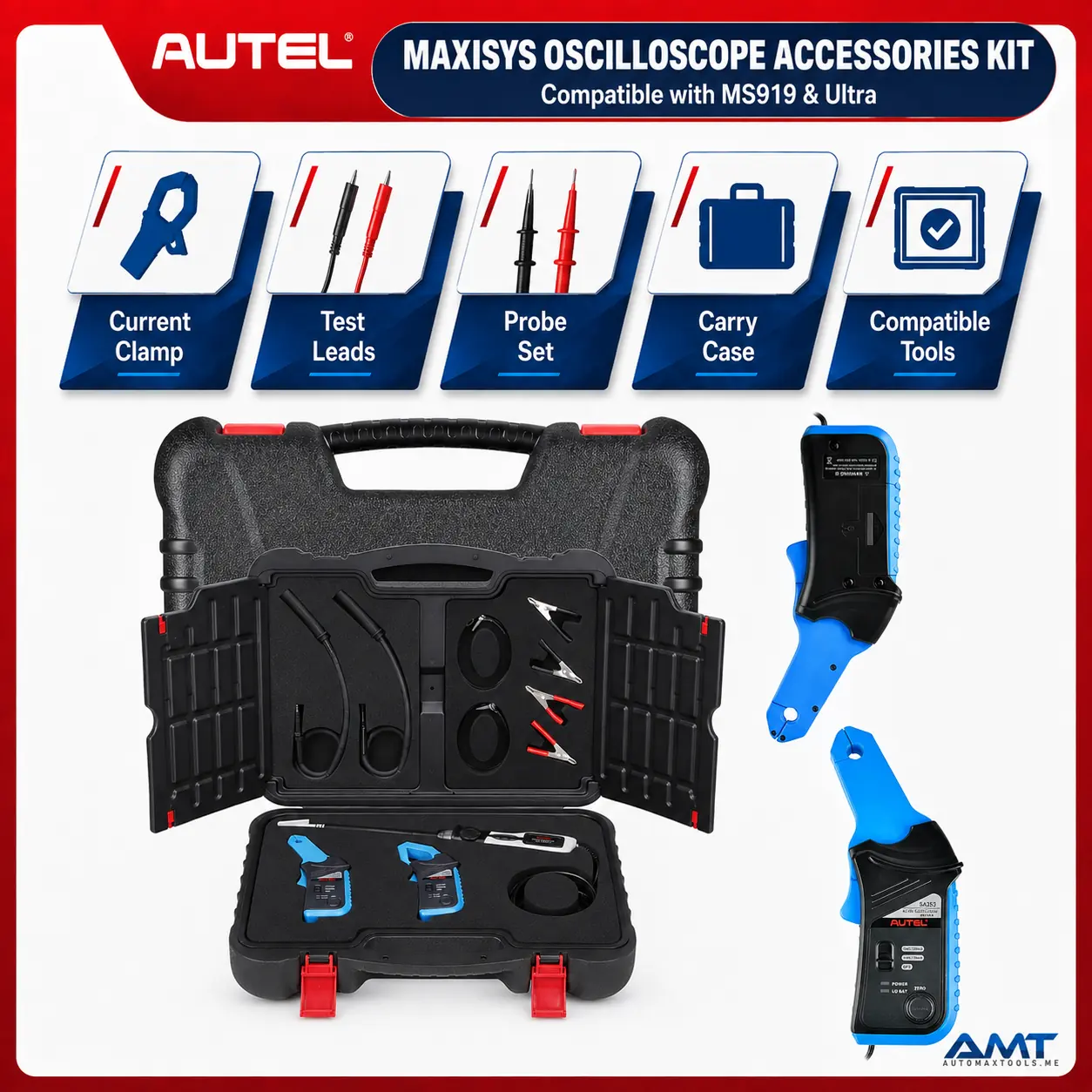

Autel MaxiSYS MSOAK oscilloscope accessory kit

65A & 650A AC/DC Current Clamps

The two current clamps allow non-invasive current measurement across low- and high-current automotive circuits when connected to a compatible scope or measurement platform.

Coil-on-Plug Probe

The COP probe is designed to capture ignition waveforms without direct electrical connection to the high-voltage ignition circuit.

HT Leads, Battery Clips & Carry Case

The kit also includes two HT extension leads, two battery clips and a fitted blow-molded carrying case for organized workshop storage.

Warranty, Software Package & Regional Version

The Automax Tools IMEA package for Autel MaxiSYS MSOAK Oscilloscope Accessories Kit includes 2 years of software updates/support where applicable and a 1-year limited warranty. For chargers, calibration hardware, accessories and bundle components, software entitlement applies to the compatible Autel host platform or connected software where applicable. Regional restriction: this Automax Tools IMEA listing is intended for use in India, the Middle East and Africa.

Ideal for Professional Use

The Autel MaxiSYS MSOAK Oscilloscope Accessories Kit is well suited for:

  • Automotive electricians
  • Diagnostic specialists
  • Scope technicians
  • Advanced repair workshops
  • MS919 / Ultra owners

Why Choose the Autel MaxiSYS MSOAK Oscilloscope Accessories Kit?

MSOAK turns the VCMI / MP408 oscilloscope into a more complete automotive electrical diagnostic setup by adding the current clamps and ignition accessories technicians use most often. Vehicle coverage, charging output, calibration procedures, programming functions and included accessories can vary by vehicle, installation, software version, electrical configuration and region. View Autel MaxiSYS MSOAK Oscilloscope Accessories Kit Product / Reference Information
