Autel MaxiTPMS TBE200 Laser Tire & Brake Examiner | TIN/DOT Scan | Dual Cameras | Wear Analysis | AMOLED | 2-Year Updates
AED 1,412.50
The Autel MaxiTPMS TBE200 is an advanced laser-enabled tire tread-depth and brake-disc wear examiner with dual cameras for tire documentation and Tire Identification Number / DOT scanning. It is designed for professional tire shops and inspection centers requiring fast measurement, visual evidence and service recommendations.
The TBE200 measures tread depth and brake-disc wear with 0.1mm accuracy, displays real-time measurement curves, analyzes uneven wear and provides tire / brake service recommendations. Brake-disc wear can be measured without removing the tire during supported inspection procedures.
A 1.65-inch AMOLED touchscreen, 1MP macro camera and 8MP zoomable camera allow technicians to document tire wear and damage and scan tire identification information. The TBE200 can operate independently or integrate with a compatible Autel ITS600 for detailed TPMS / tire reports.
| Specification | MaxiTPMS TBE200 |
|---|---|
| Product Type | Advanced Laser Tire Tread & Brake Disc Wear Examiner |
| Model | MaxiTPMS TBE200 |
| Measurement | Tire Tread Depth & Brake Disc Wear |
| Laser Accuracy | 0.1mm |
| Display | 1.65″ AMOLED Touchscreen, 348 × 442 |
| Processor | 4× ARM Cortex-A35, 1.5GHz |
| Memory | 1GB RAM + 4GB ROM |
| Cameras | 1MP Macro + 8MP Zoomable Camera |
| TIN / DOT Scan | Supported |
| Tire Wear Photos | Supported |
| Uneven Wear Analysis | Supported |
| Real-Time Curves | Supported |
| Maintenance Suggestions | Tire / Disc Replacement, Rotation & Alignment |
| Connectivity | Wi-Fi + USB Type-C |
| Battery | 3.7V / 3000mAh |
| Typical Battery Life | Up to Approx. 8 Hours Under Test Conditions |
| ITS600 Integration | Supported |
| Software Updates | 2 Years Included – Automax Tools IMEA Package |
| Warranty | 1 Year Limited Warranty |
Autel MaxiTPMS TBE200 Official Information
View Official / Reference Information for Autel MaxiTPMS TBE200
1 Year Warranty. 2 Year Free Software Updates.
IP Restriction (works only in India, Middle East and Africa).
In stock
Autel MaxiTPMS TBE200 – Advanced Laser Tire & Brake Examiner
The Autel MaxiTPMS TBE200 adds camera-based tire documentation and tire identification scanning to Autel’s laser tread-depth and brake-disc wear measurement platform.
It is designed for tire shops, alignment centers and inspection operations that want measurable tire-condition data and visual documentation in one handheld tool.
0.1mm Laser Tread Depth Measurement
The TBE200 provides precise laser-based tire tread measurement with 0.1mm accuracy.
- Full tread measurement
- Real-time measurement curves
- Uneven wear analysis
- Quick Check
- Detailed single-tire results
- Replacement and maintenance suggestions
Brake Disc Wear Without Wheel Removal
The TBE200 can measure brake-disc wear without removing the tire during supported inspection procedures, helping reduce workshop inspection time.
Dual Cameras & Tire Documentation
The tool includes a macro camera and a higher-resolution zoomable camera.
- 1MP macro camera
- 8MP zoomable camera
- Photograph tire wear and damage
- Document inspection condition
- Scan Tire Identification Number / DOT information
TIN / DOT Scan & Tire Information
The TBE200 can scan tire identification information, supporting tire-age / identification workflows where available.
1.65″ AMOLED Super Retina Display
The high-resolution 348 × 442 AMOLED touchscreen displays measurements, curves and inspection information directly on the handheld examiner.
ITS600 Integration & Reports
Use the TBE200 independently or pair it with a compatible Autel ITS600 to combine tire-condition measurements with TPMS information in detailed service reports.
Professional Portable Hardware
The TBE200 uses a 1.5GHz ARM quad-core processor, 1GB RAM, 4GB ROM, Wi-Fi, USB Type-C and a 3000mAh battery.
2 Year Software Updates, Warranty & Regional Version
This Autel MaxiTPMS TBE200 package supplied by Automax Tools includes 2 years of software updates and a 1-year limited warranty.
IMEA regional restriction: this listing is intended for use in India, the Middle East and Africa.
Ideal for Professional Automotive Use
The Autel MaxiTPMS TBE200 is well suited for:
- Tire and wheel centers
- Alignment shops
- Vehicle inspection centers
- Fleet maintenance
- Professional tire-service technicians
Why Choose the Autel MaxiTPMS TBE200?
The TBE200 is the stronger choice over the TBE100 when a workshop also needs tire identification scanning, dual-camera documentation and more complete visual tire inspection capability.
Function availability, vehicle coverage and supported procedures can vary by manufacturer, vehicle model, model year, control module, software version and region.
View Autel MaxiTPMS TBE200 Product Information
Contact Automax Tools UAE for Autel MaxiTPMS TBE200
| Weight | 1 kg |
|---|---|
| Dimensions | 18 × 10 × 25 cm |
| Brands |
Specification
| Recommended Use | Indoor |
| Processor | 4x ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM LPDDR3 & 4GB ROM |
| Display | 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution |
| Connectivity | • Wi-Fi • USB 2.0, Type C |
| Camera | CMOS WXGA, 1 megapixel & 8 megapixel, 30fps |
| Audio output | Output: Beep |
| Power and Battery | • 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply |
| Tested Battery Life | Around 8 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”) |
| Net Weight | 188 g (0.41 lb.) |

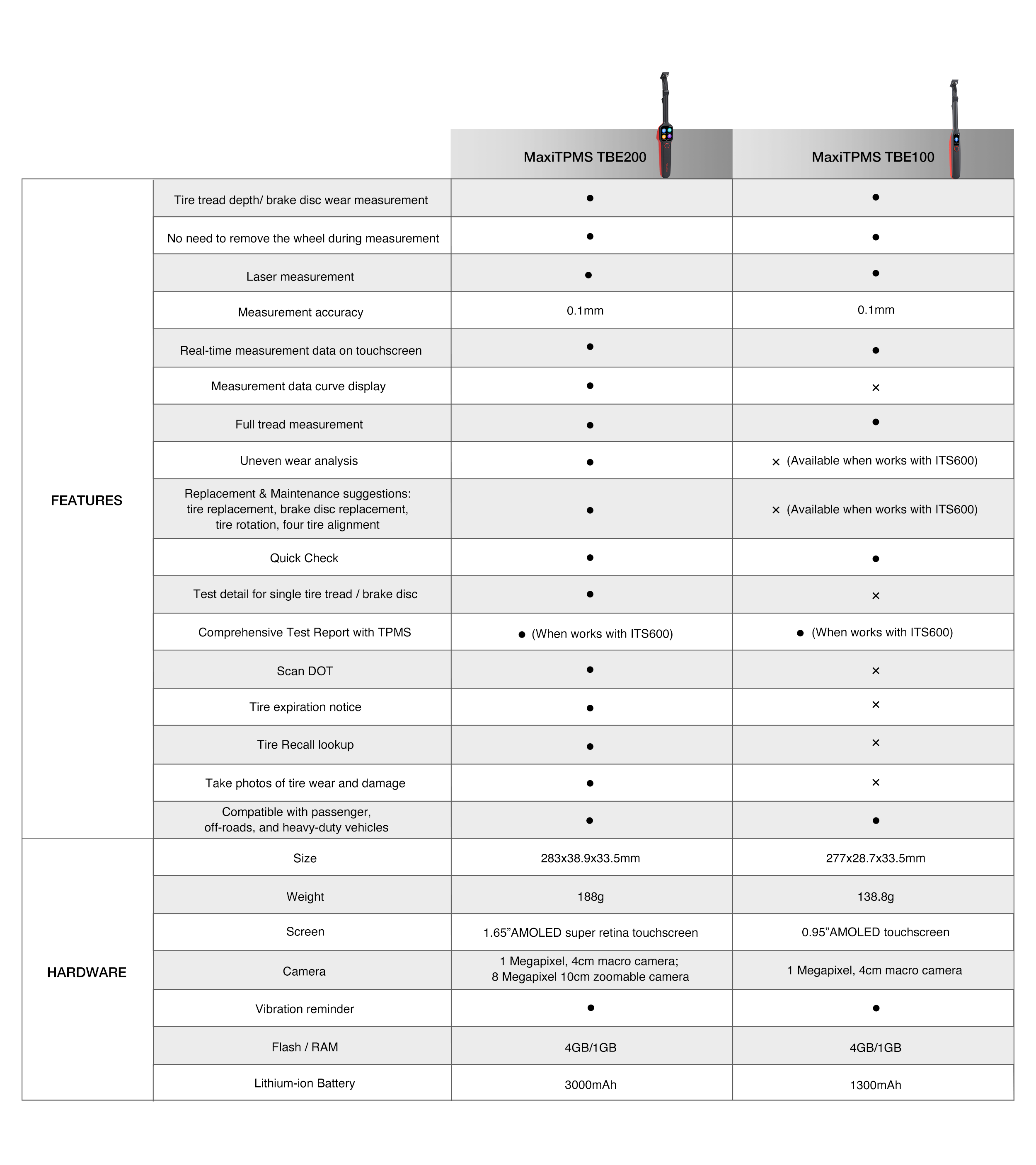

Comparison
| Comparison | MaxiTPMS TEB 200 | MaxiTPMS TEB 100 |
|---|---|---|
| FEATURES | ||
| Tire tread depth/ brake disc wear measurement |  |
|
| No need to remove the wheel during measurement | |
|
| Laser measurement | |
|
| Measurement accuracy | 0.1mm | 0.1mm |
| Real-time measurement data on touchscreen | |
|
| Measurement data curve display | |
|
| Full tread measurement | |
|
| Uneven wear analysis | |
(Available when works with ITS600) |
| Replacement & Maintenance suggestions: Tire replacement, brake disc replacement, tire rotation, four tire alignment |
|
(Available when works with ITS600) |
| Quick Check | |
|
| Test detail for single tire tread / brake disc | |
|
| Comprehensive Test Report with TPMS | (When works with ITS600) |
(When works with ITS600) |
| Scan DOT | |
|
| Tire expiration notice | |
|
| Tire recall lookup | |
|
| Take photos of tire wear and damage | |
|
| Compatible with Passenger cars, off-roads, commercial vehicles | |
|
| Hardware | ||
| Size | 283×38.9×33.5mm | 277×28.7×33.5mm |
| Weight | 188g | 138.8g |
| Screen | 1.65”AMOLED super retina touchscreen | 0.95”AMOLED touchscreen |
| Camera | 1 Megapixel, 4cm macro camera; 8 Megapixel 10cm zoomable camera | 1 Megapixel, 4cm macro camera |
| Vibration reminder | |
|
| Flash / RAM | 4GB/1GB | 4GB/1GB |
| Lithium-ion Battery | 3000mAh | 1300mAh |
