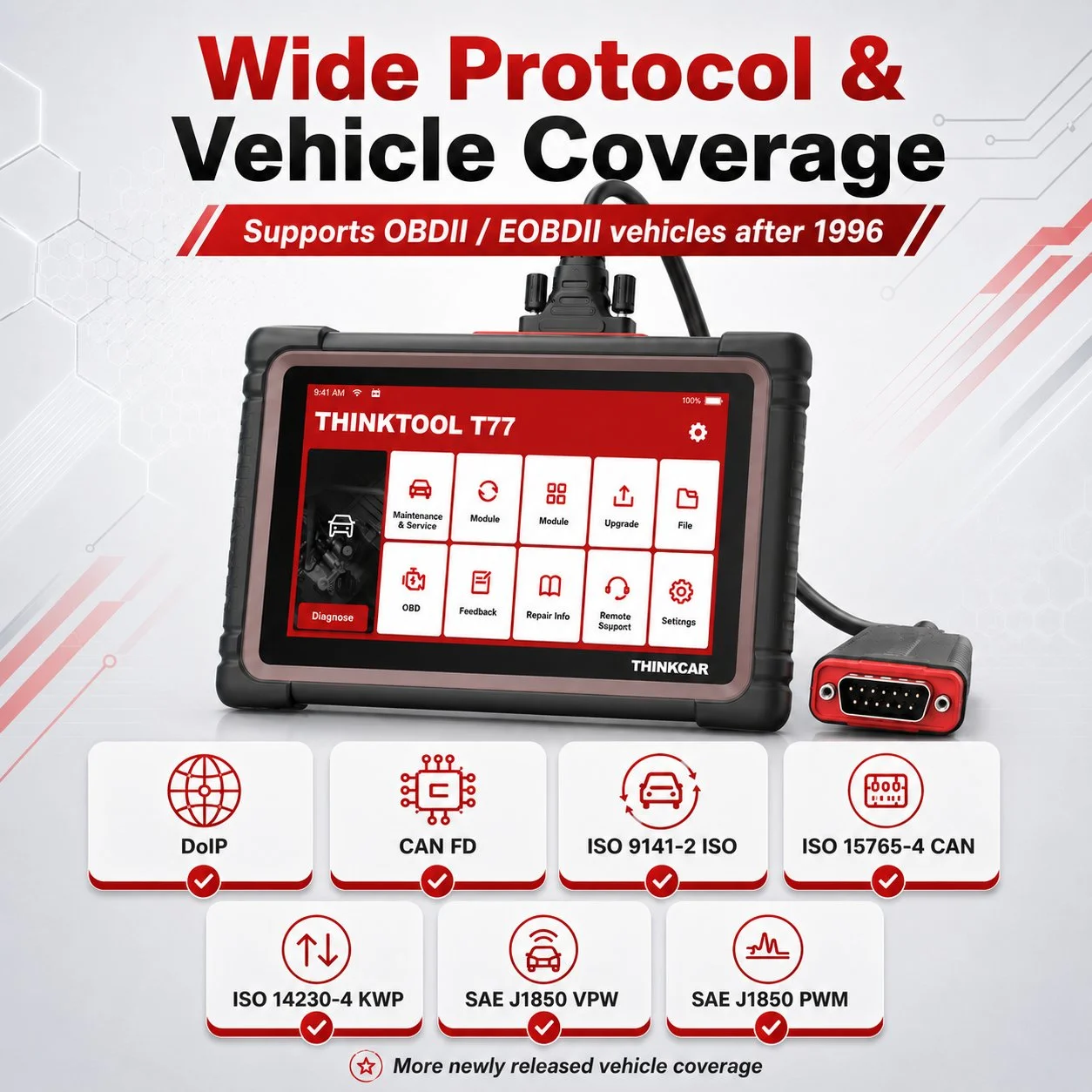

Thinktool T77 Diagnostic Scanner – 7″ Full-System Tool, CAN FD, DoIP, Bi-Directional Control & 34 Services | 2-Year Warranty & 3-Year Software Updates
AED 1,582.00
THINKTOOL T77 is a compact 7-inch professional diagnostic scanner with full-system diagnostics, modern CAN FD/DoIP communication and 34 maintenance functions.
Key Features
- OE-level full-system diagnostic access on supported vehicles
- Bi-directional active tests and advanced coding where supported
- CAN FD and DoIP support through the wired diagnostic interface
- 34 maintenance and service reset functions
- 4GB RAM, 64GB storage and 6000mAh battery
Quick Specifications
| Display | 7″ touchscreen, 1024×600 |
|---|---|
| Processor | MT8365 Cortex-A53 Quad-Core |
| Memory | 4GB RAM / 64GB storage |
| Battery | 6000mAh / 3.8V |
| Connection | 1.2 m DB15 diagnostic cable |
| Protocols | CAN FD, DoIP, OBDII/EOBD and major legacy protocols |
Software package: 3 years of passenger-vehicle software updates are included with this listing.
Warranty: 2 years. Software updates: 3 years included with this scanner.
In stock
Thinktool T77 Diagnostic Scanner – 7″ Full-System Tool, CAN FD, DoIP, Bi-Directional Control & 34 Services | 2-Year Warranty & 3-Year Software Updates
The THINKTOOL T77 is a 7-inch workshop diagnostic scanner designed for technicians who want modern protocol support and professional diagnostic capability in a compact wired platform. THINKCAR positions the T77 as a plug-and-play full-function diagnostic tool for passenger vehicles.
Why Choose This Tool?
Its combination of a compact touchscreen, wired diagnostic connection, CAN FD/DoIP support and professional service functions makes the T77 practical for daily fault finding without the size or cost of a flagship tablet.
Diagnostic & Service Capabilities
- Read and clear DTCs across supported vehicle systems
- View live data streams and ECU information
- Run bi-directional/active tests on supported components
- Perform advanced coding and special functions where vehicle coverage allows
- Access 34 common workshop maintenance and reset functions
Hardware & Connectivity
| Display | 7″ touchscreen, 1024×600 |
|---|---|
| CPU | MT8365 Cortex-A53 Quad-Core |
| RAM / Storage | 4GB / 64GB |
| Battery | 6000mAh / 3.8V |
| Diagnostic Interface | 1.2 m DB15 wired diagnostic cable |
| Protocols | CAN FD, DoIP, OBDII/EOBD, ISO 9141-2, ISO 14230-4, ISO 15765-4, SAE J1850 |
Ideal Workshop Applications
- Independent workshops and mobile diagnostic technicians
- Late-model passenger-vehicle diagnostics requiring CAN FD or DoIP
- Routine maintenance resets, coding and active tests
- Technicians who prefer a stable wired VCI connection
Compatibility & Package Notes
The T77 is primarily a passenger-vehicle diagnostic platform. Available coding, special functions and service procedures vary by vehicle software coverage.
Software package: 3 years of passenger-vehicle software updates are included with this listing.
Before ordering: Vehicle coverage, coding, programming, active tests and service functions can vary by make, model, year, ECU, region and software authorization. Contact Automax Tools with the VIN or exact vehicle details if you need confirmation for a specific function.
Professional Workshop Supply from Automax Tools
Supplied by Automax Tools for professional garages, diagnostic technicians, mobile mechanics and automotive service businesses in the UAE, GCC and international markets.
Warranty: 2 years. Software updates: 3 years included with this scanner.
