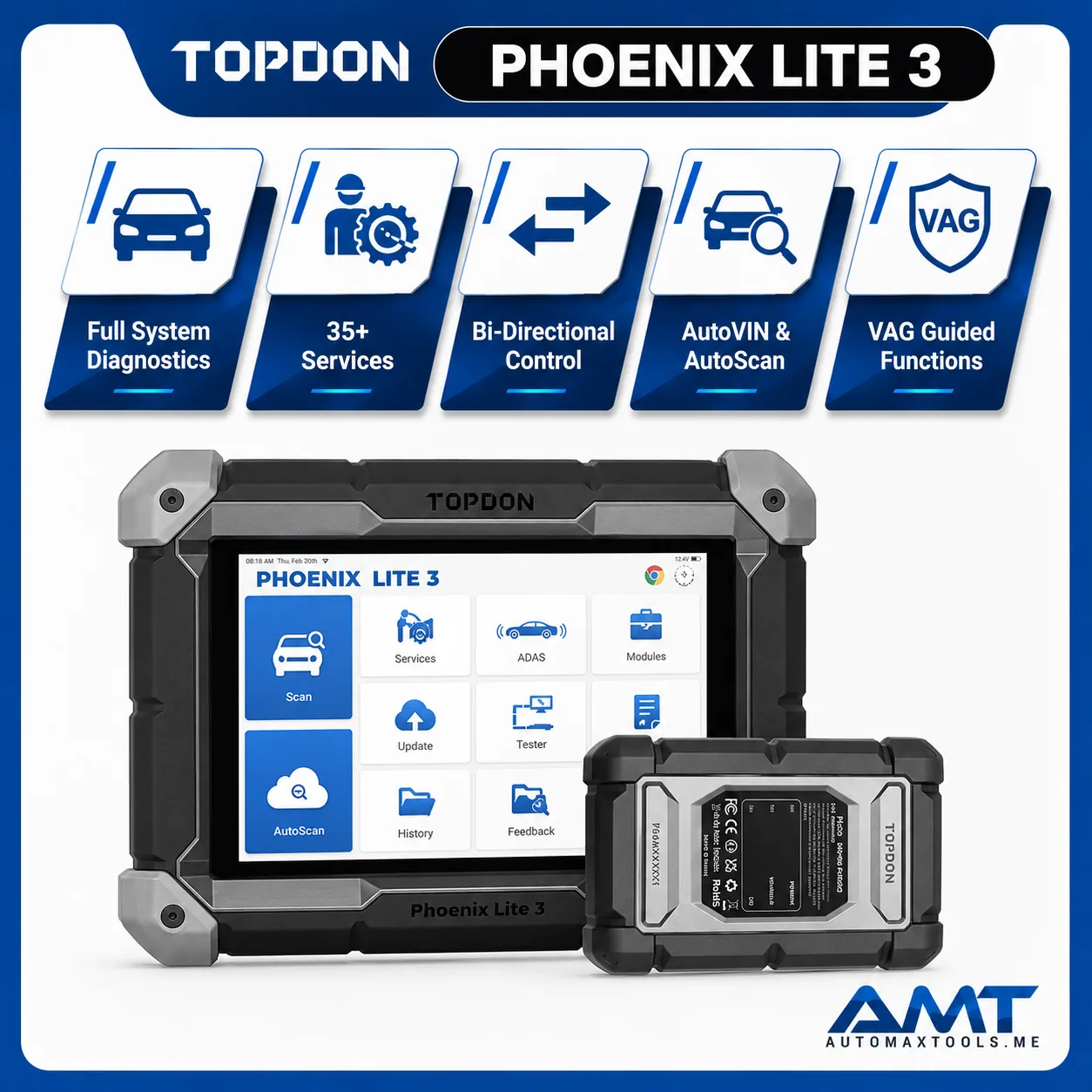

TOPDON PHOENIX LITE 3

د.إ 3,359.00 د.إ 3,959.00

(7 reviews)

TOPDON Phoenix Lite 3 Diagnostic Tool – Comprehensive Vehicle Diagnostics with Precision Topology Mapping, CAN-FD Protocol, FCA Gateway Access, Bi-Directional Controls, and 35 Maintenance Functions

FeatureSpecification
Display8-Inch LCD, 1280*800 Pixels
CPU4-Core, 2.0 GHz
Operating SystemAndroid 10.0
RAM2G
ROM64G
Battery12600 mAh, up to 24h screen-on time
Operating Voltage9~18V
Storage Temperature-20℃60℃ (-4℉140℉)
Working Temperature0℃50℃ (32℉122℉)
Dimensions25818350.5 mm (10.27.22 inches)
Weight1184.5 g (2.61 lbs.)
Languages24 Languages
Order on WhatsApp

Description

TOPDON PHOENIX LITE 3 Key Features:

  • Precision Topology Mapping: Enhance communication efficiency and troubleshoot with accuracy, providing a comprehensive depiction of vehicle systems and statuses.
  • CAN-FD Protocol Supported: Compatible with modern vehicles (2020-now GM & Chrysler Models).
  • FCA Gateway Access: Seamless full diagnostics on newer cars like Fiat without additional adapters.
  • 168+ Vehicle Makes Coverage: Full-system diagnostics for 168 makes and models, including ABS, SRS, Engine, and transmission systems.
  • 35 Maintenance Functions: Covers essential services like Oil resets, EBP resets, and more specialized functions.
  • Expanded Add-on Tools: Integrates with TOPDON’s professional products for extended functionality.
  • Bi-Directional Controls: Conduct active tests to assess component integrity and functionality effectively.
  • Effortless Diagnostics Anywhere: AutoVin, VAG guided functions, one-click code reading/clearing, and wireless diagnostics via Bluetooth VCI.
  • Data Reporting and Sharing: Display and compare 4 data streams, generate and share detailed diagnostic reports.

TOPDON PHOENIX LITE 3 UAE DUBAI AT AUTOMAX TOOLS 2024TOPDON PHOENIX LITE 3 UAE DUBAI AT AUTOMAX TOOLS 2024

TOPDON PHOENIX LITE 3 Specifications:

  • Display: 8-Inch LCD, 1280*800 Pixels
  • CPU: 4-Core Processor, 2.0 GHz
  • Operating System: Android 10.0
  • RAM/ROM: 2G/64G
  • Battery: 12600 mAh, up to 24h screen-on time
  • Operating Voltage: 9~18V
  • Temperature: Storage: -20℃60℃ (-4℉140℉), Working: 0℃50℃ (32℉122℉)
  • Dimensions: 25818350.5 mm (10.27.22 inches)
  • Weight: 1184.5 g (2.61 lbs.)
  • Multilingual Support: 24 Languages including English, German, Spanish, French, and more

TOPDON PHOENIX LITE 3 UAE DUBAI AT AUTOMAX TOOLS 2024

TOPDON PHOENIX LITE 3 What’s in the Box:

  • Phoenix Lite 3
  • MDCI Dongle
  • Battery Clamps/Cable Set
  • Cigarette Lighter Cable
  • Fuses
  • Type-C to USB Cable
  • Power Adapter
  • OBDI Adapter BOX Transfer Line
  • OBDII Extension Cable
  • Various Vehicle-Specific Adapters (BENZ, TOYOTA, GM/VAZ, BMW, CHRYSLER, HONDA, NISSAN, MITSUBISHI/HYUNDAI, FIAT)
  • User Manual
  • Package List
  • Password Letter

TOPDON PHOENIX LITE 3 Warranty & Policy:

  • Continues with Customer’s Subscription
  • 2 Years of Free Software Upgrades

TOPDON PHOENIX LITE 3 Prop 65 Warning: Cancer and Reproductive Harm – More Info
