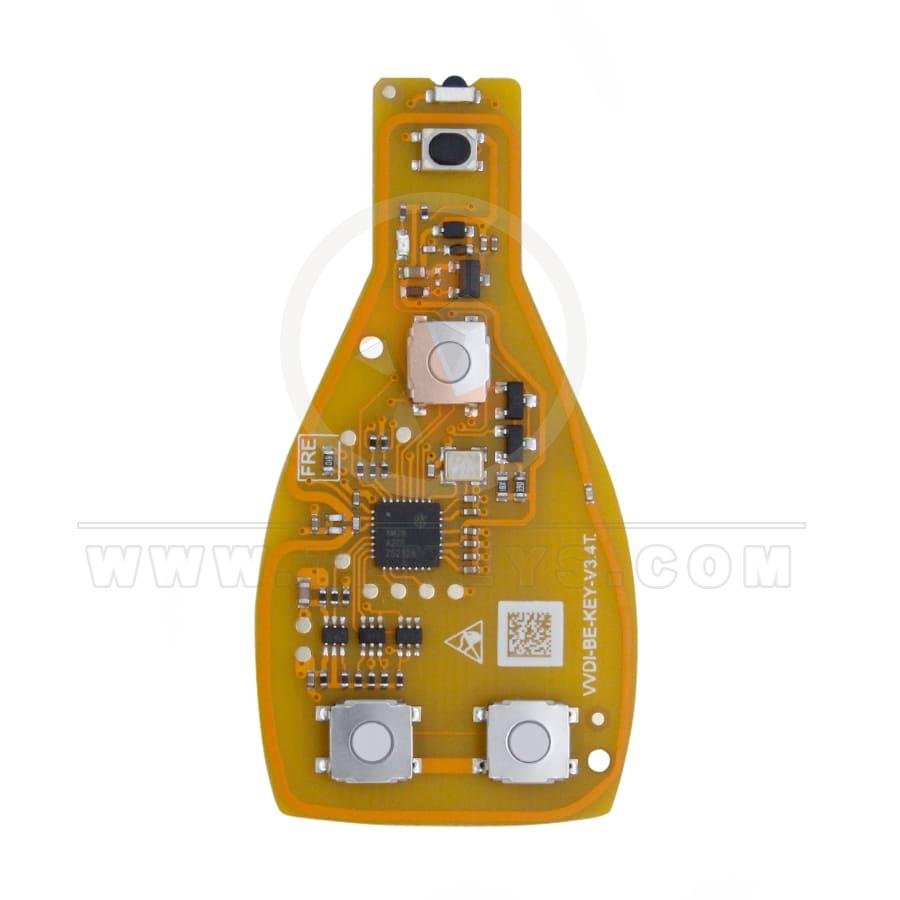

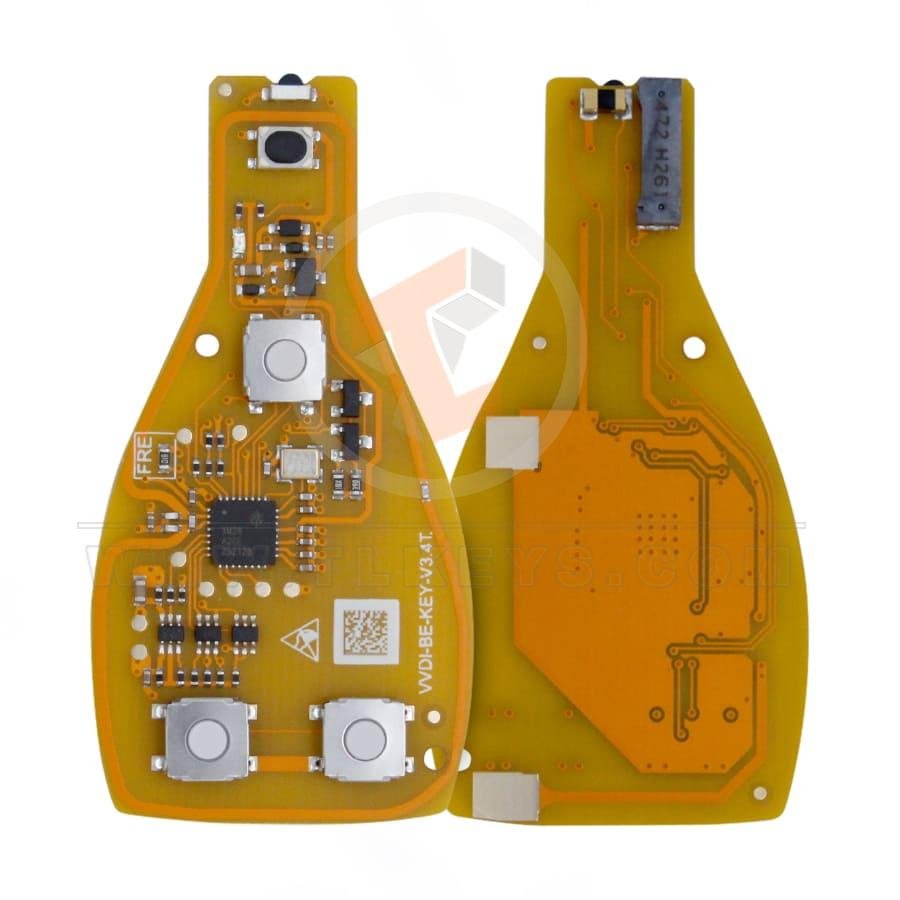

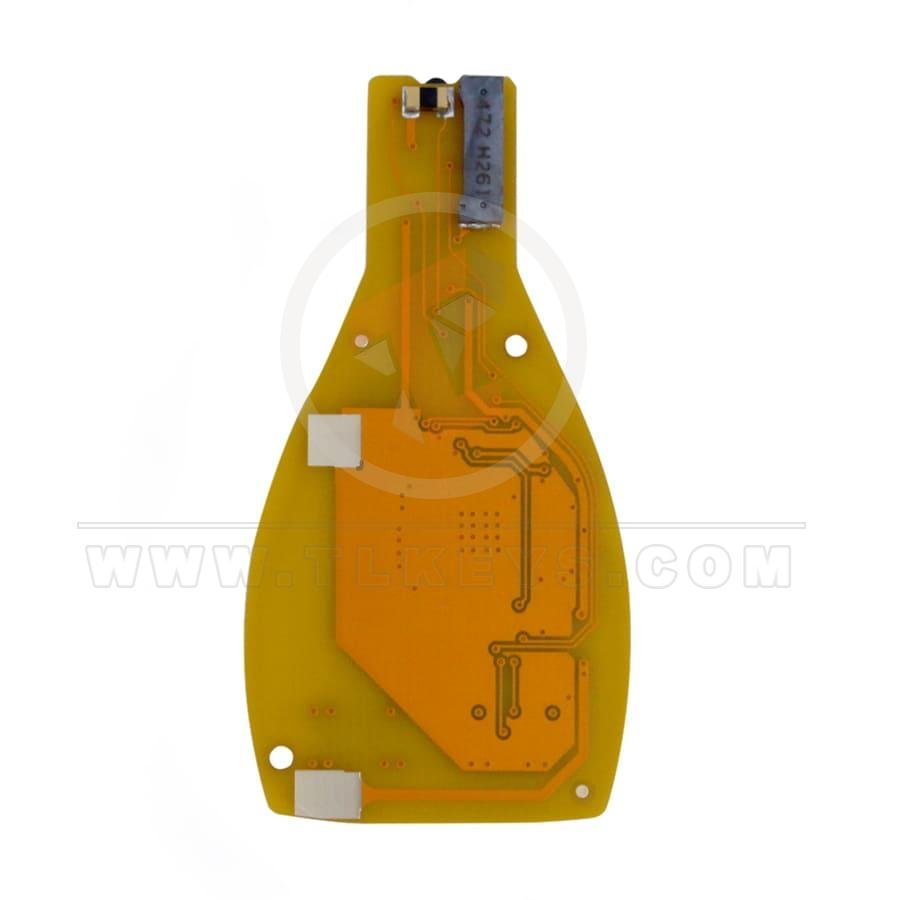

Xhorse XNBZT1GL VVDI Mercedes Benz BGA PCB 4 Button 315 / 433 MHz

XHORSE BE Key Pro: Compatibility with CGDI MB, VVDI Key Tool Plus, IM508, IM608, and VVDI MB TOOL

The yellow board does not contain 200 bonus points and can be programmed by all kinds of MB key programmers, such as Autel IM608 pro, CGDI, VVDI MB, Key Tool Plus, Digimaster-III, CKM100, AK500, MBE MB-KEY OBD2, NEC-57 MB-PRO, and so on. The yellow board contains 200 bonus points to exchange for 1 token and works with the Xhorse VVDI MB Tool.

Xhorse BE smart key features:

• Frequency changeable 315MHz/433MHz
• Reusable – you can reset it
• Programmable by all kinds of MB key programmers mentioned earlier
• Can use the Mercedes smart key 3-button or 2-button key, and it works for lock/unlock/trunk functions.
• Xhorse brand, superior quality.

VVDI MB BE Key Yellow Applicable chip models:

• 705 Moto (1997-2000)
• NEC (2001-2005)
• NEC (2006-2010)
• BGA (after 2011)

Xhorse VVDI Mercedes BE Supported Models:​

Ways to reset the frequency VVDI MB BE Key Yellow Board:

Use the PCB SMD resistor: Weld the 1K SMD resistor to the position of the arrow points, and the frequency is 315MHz.
After removal, it will be 433.92MHz.
Change the frequency between 315MHz and 433MHz with the VVDI MB Tool.
Check the detailed guide here: How to Change Benz VVDI BE Key Pro Frequency.
There are 2 methods to change the Xhorse VVDI BE key frequency between 315MHz and 433MHz.
Xhorse BE key is designed to work with VVDI MB Tool and other MB key programmers.

Change VVDI BE key frequency with PCB resistor:

Weld the 1K SMD resistor to the position of the arrow points, and the frequency is 315MHz.
After removal, it will be 433.92MHz.

Change XHorse BE key frequency with VVDI MB Tool:

In VVDI MB software, select 'Set key remote frequency.'
Choose 433MHz and set the frequency.
Change frequency to 433MHz successfully.

Xhorse VVDI BE Key Pro Features:

• More compatibility
• New design
• High Stability
• High reliability
• Digital Signature
• High quality at a reasonable price
• No points will be accumulated

VVDI BE Key Pro improvements:

1. Fixed the bug that W164/W639 EIS data doesn't synchronize the key.
2. Fixed the bug that the BE key fails to turn on the ignition after repeated attempts.
3. Fixed the bug of the trunk remote open.
4. Fixed the bug that the BE key only sent an RF signal one time.
5. After the update, the RF signal can be sent two times when pressing and releasing the key.
6. Modified the rolling algorithm, fixing some errors in the BE key.
7. Added pre-roll algorithm: the HASH value can roll ahead.
8. Adopted car-grade quartz crystal to improve infrared communication stability.
9. Boosted the infrared signal when you press the button.
10. Supports resetting the key frequency between 315MHz and 433.92MHz using the VVDI MB tool or the PCB SMD resistor.

Note: The VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with the VVDI MB tool first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency, then use the SMD resistor.

How to assemble the case with the VVDI BE key Pro improved version board?

This content shows the general guide on how to assemble the VVDI BE Key Pro improved version with the Smart Key Shell 3 Button for Mercedes Benz.

1. Put the VVDI BE key Pro improved version PCB into the case.
2. Cover the bottom case.
3. Insert the battery and cover the case.
4. Push the metal strips on both sides into the right position.
5. If the rear metal component is first assembled, the metal strips on both sides won't be able to be pushed into the right position.
6. Here is the rear metal button.
7. Put in the small key and start button.
8. If you want to disassemble the case, please do it from the last step to the first step.

Note: If the rear metal component is first assembled, then the metal strips on both sides won't be able to be put into the right position.
Good News: 1 VVDI BE Key Pro Improved Version = 200 VVDI MB BGA Tool Points = 1 VVDI MB BGA Token.
Please get the token yourself in the app.


VVDI MB token exchange:

Connect VVDI MB and VVDI Key Tool to the computer and run the 'upgrade kit' for binding VVDI MB to your account.
Log in to your account and link the VVDI MB to your account.
Use the VVDI Key Tool app to exchange tokens as you want."
