<h3>Autel MaxiVCI V150 Wireless Diagnostic Interface</h3>
<p>The Autel MaxiVCI V150 is a compact 16-pin vehicle communication interface that links a supported Autel diagnostic tablet to the vehicle data link connector. It receives power from the vehicle DLC and communicates with the paired tablet over Bluetooth.</p>
<h3>Technical Specifications</h3>
<table><thead><tr><th>Specification</th><th>Details</th></tr></thead><tbody>
<tr><td><strong>Model</strong></td><td>MaxiVCI V150</td></tr>
<tr><td><strong>Vehicle Connector</strong></td><td>Direct 16-pin OBD-II/DLC connector</td></tr>
<tr><td><strong>Communication</strong></td><td>Bluetooth BR + EDR, 2.4GHz</td></tr>
<tr><td><strong>Input Voltage</strong></td><td>8–30V DC</td></tr>
<tr><td><strong>Supply Current</strong></td><td>150mA at 12V DC</td></tr>
<tr><td><strong>Operating Temperature</strong></td><td>0–50°C</td></tr>
<tr><td><strong>Storage Temperature</strong></td><td>−10–60°C</td></tr>
<tr><td><strong>Device Dimensions</strong></td><td>77.47 × 46.8 × 21.38mm</td></tr>
<tr><td><strong>Device Weight</strong></td><td>51.5g</td></tr>
</tbody></table>
<p><strong>Compatibility note:</strong> Use only with Autel tablets and software packages that specifically support the MaxiVCI V150. It is not a universal replacement for every Autel VCI, VCMI or J2534 interface.</p> <h3>Autel MaxiVCI V150 Wireless Diagnostic Interface</h3>
<p>The Autel MaxiVCI V150 is a compact 16-pin vehicle communication interface that links a supported Autel diagnostic tablet to the vehicle data link connector. It receives power from the vehicle DLC and communicates with the paired tablet over Bluetooth.</p>
<h3>Technical Specifications</h3>
<table><thead><tr><th>Specification</th><th>Details</th></tr></thead><tbody>
<tr><td><strong>Model</strong></td><td>MaxiVCI V150</td></tr>
<tr><td><strong>Vehicle Connector</strong></td><td>Direct 16-pin OBD-II/DLC connector</td></tr>
<tr><td><strong>Communication</strong></td><td>Bluetooth BR + EDR, 2.4GHz</td></tr>
<tr><td><strong>Input Voltage</strong></td><td>8–30V DC</td></tr>
<tr><td><strong>Supply Current</strong></td><td>150mA at 12V DC</td></tr>
<tr><td><strong>Operating Temperature</strong></td><td>0–50°C</td></tr>
<tr><td><strong>Storage Temperature</strong></td><td>−10–60°C</td></tr>
<tr><td><strong>Device Dimensions</strong></td><td>77.47 × 46.8 × 21.38mm</td></tr>
<tr><td><strong>Device Weight</strong></td><td>51.5g</td></tr>
</tbody></table>
<p><strong>Compatibility note:</strong> Use only with Autel tablets and software packages that specifically support the MaxiVCI V150. It is not a universal replacement for every Autel VCI, VCMI or J2534 interface.</p>

Autel MaxiVCI V150 Wireless Vehicle Communication Interface | Bluetooth 2.4GHz | 16-Pin OBD-II

Name: Autel MaxiVCI V150 Wireless Vehicle Communication Interface | Bluetooth 2.4GHz | 16-Pin OBD-II | Automax Tools
SKU: MAXIVCI-V150

Categories: Accessories, Accessories Consumables, Autel, Car Diagnostic Scanner, Diagnostic Tools Accessories, Diagnostic Tools Parts SKU: MAXIVCI-V150 Tags: Autel, Bluetooth, Diagnostic Tools, MaxiVCI V150, OBD-II, VCI

Rated 0 out of 5

0 reviews

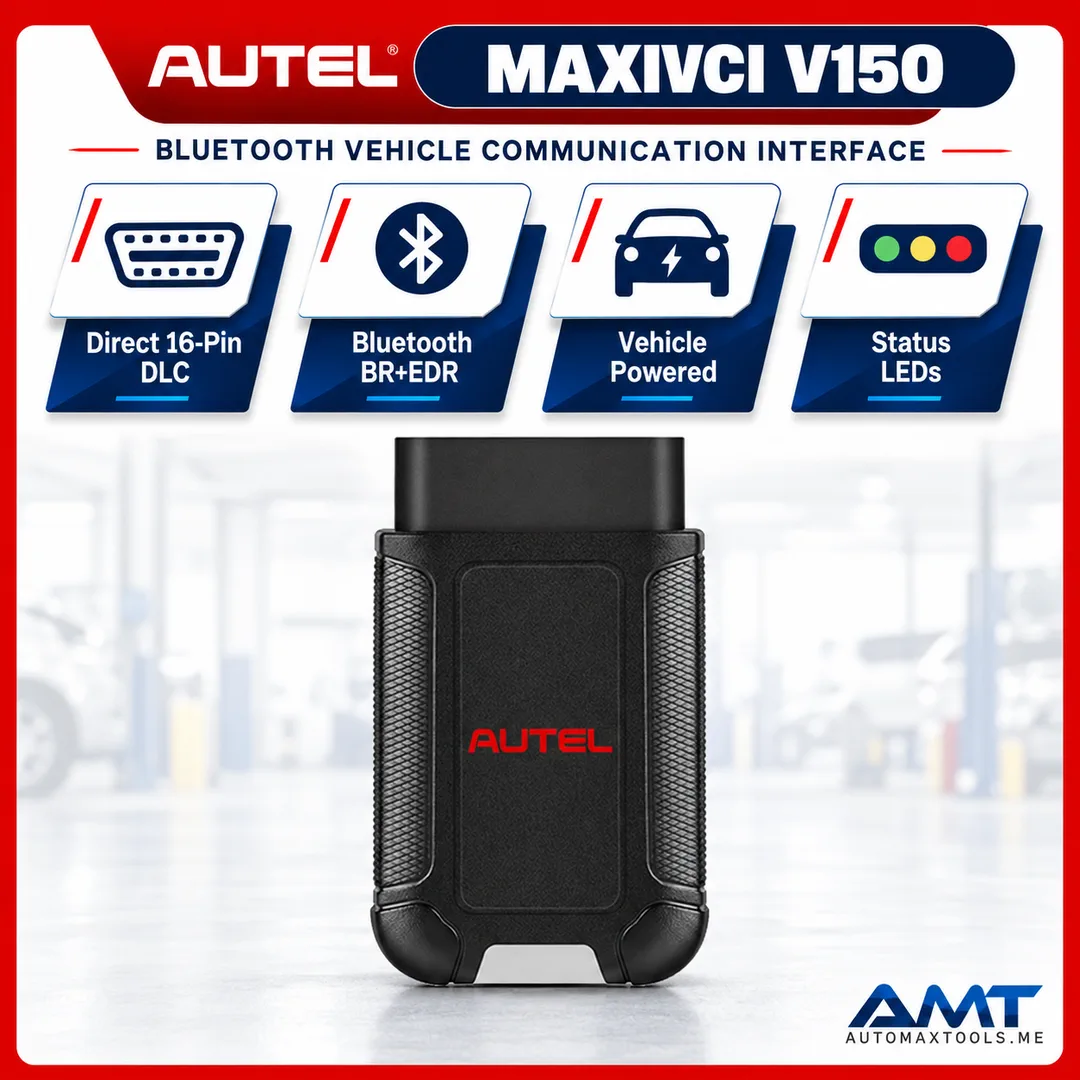

Autel MaxiVCI V150 Wireless Diagnostic Interface

The Autel MaxiVCI V150 is a compact 16-pin vehicle communication interface that links a supported Autel diagnostic tablet to the vehicle data link connector. It receives power from the vehicle DLC and communicates with the paired tablet over Bluetooth.

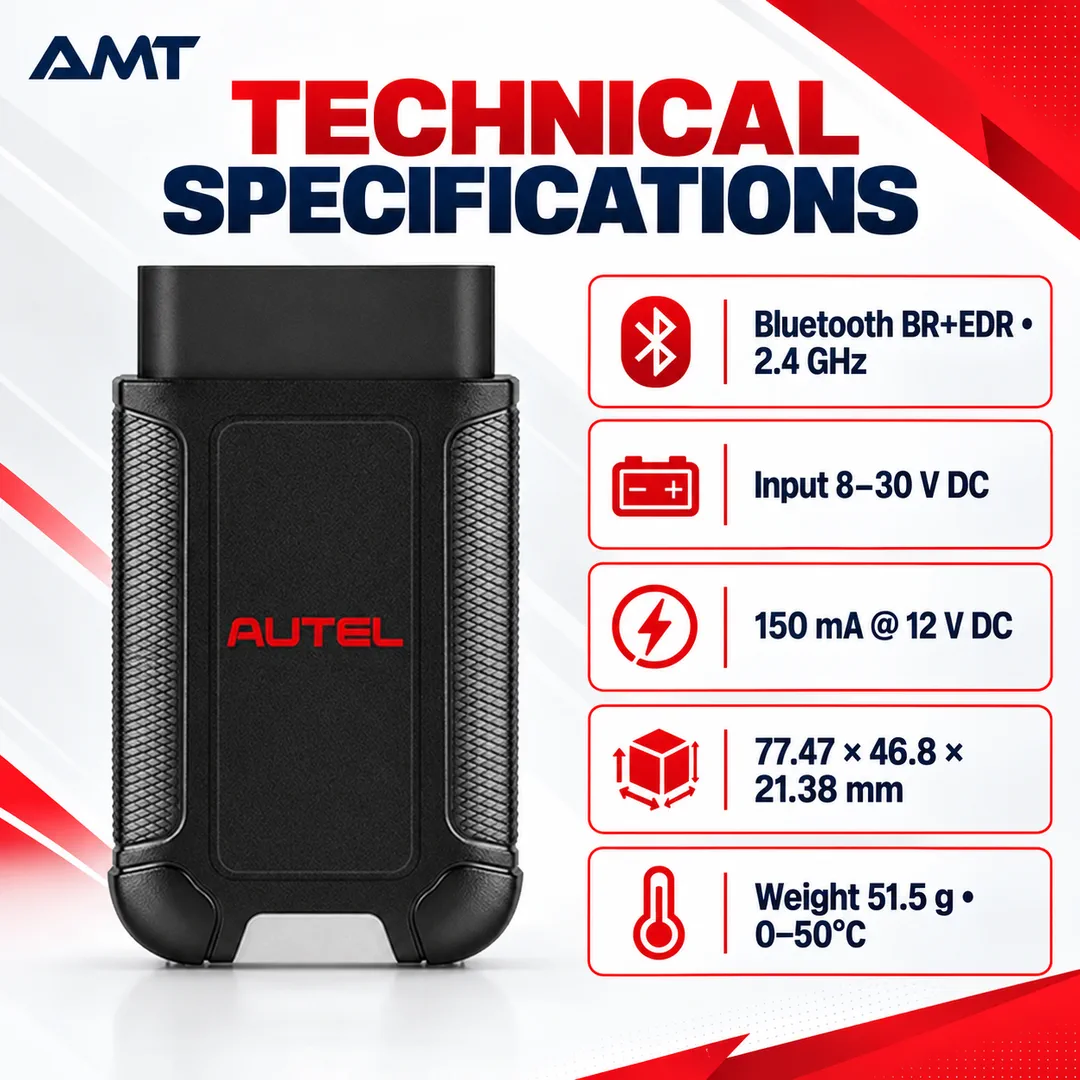

Technical Specifications

Specification	Details
Model	MaxiVCI V150
Vehicle Connector	Direct 16-pin OBD-II/DLC connector
Communication	Bluetooth BR + EDR, 2.4GHz
Input Voltage	8–30V DC
Supply Current	150mA at 12V DC
Operating Temperature	0–50°C
Storage Temperature	−10–60°C
Device Dimensions	77.47 × 46.8 × 21.38mm
Device Weight	51.5g

Compatibility note: Use only with Autel tablets and software packages that specifically support the MaxiVCI V150. It is not a universal replacement for every Autel VCI, VCMI or J2534 interface.

Order on WhatsApp

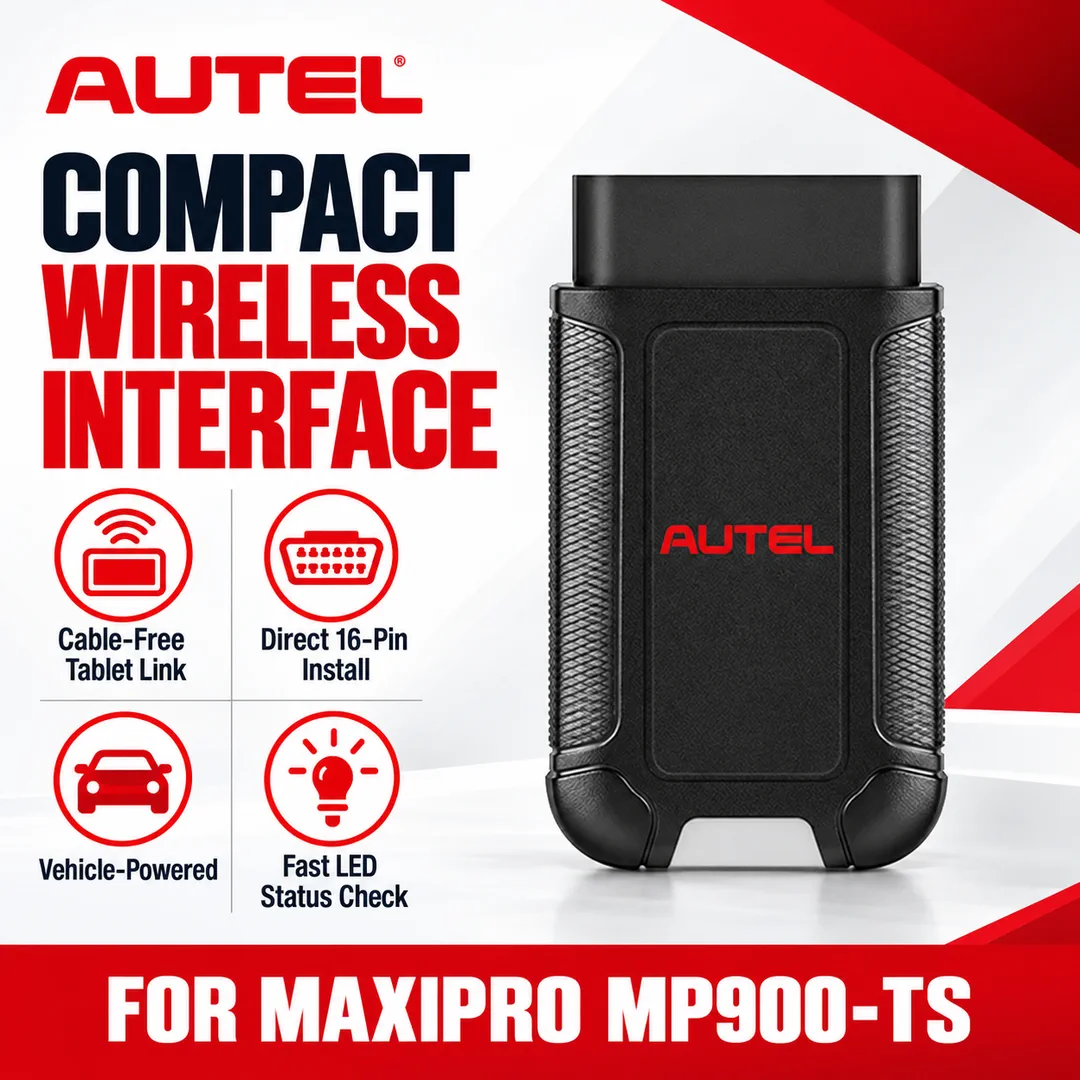

Autel MaxiVCI V150 – Compact Bluetooth Vehicle Communication Interface

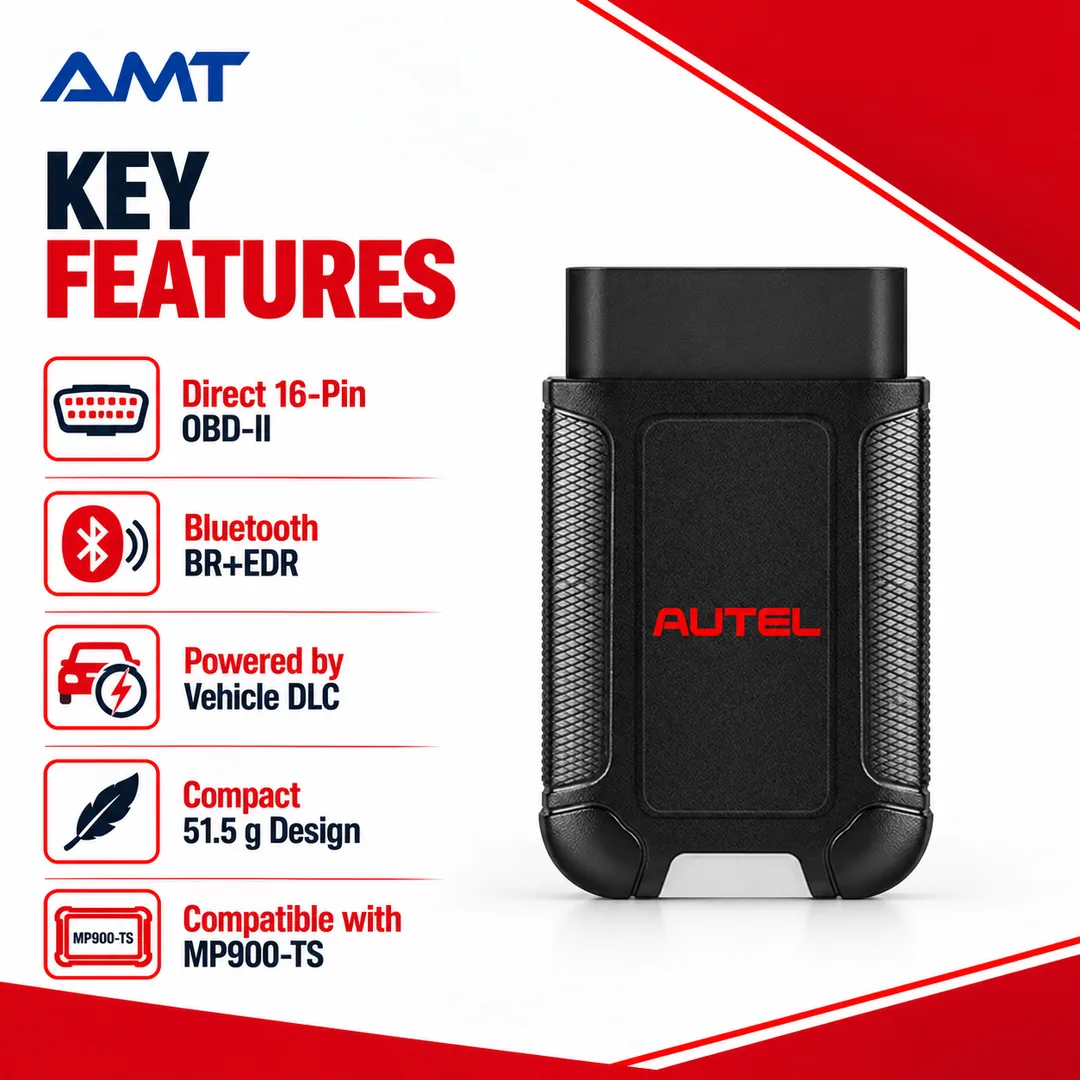

Key Benefits

Direct fit to a standard 16-pin vehicle DLC without a separate power cable.
Wireless Bluetooth communication reduces cable clutter around the vehicle.
Status LED identifies power, pairing, communication, firmware update and fault states.
Small, lightweight body is convenient for workshop and mobile diagnostic use.

Professional Application

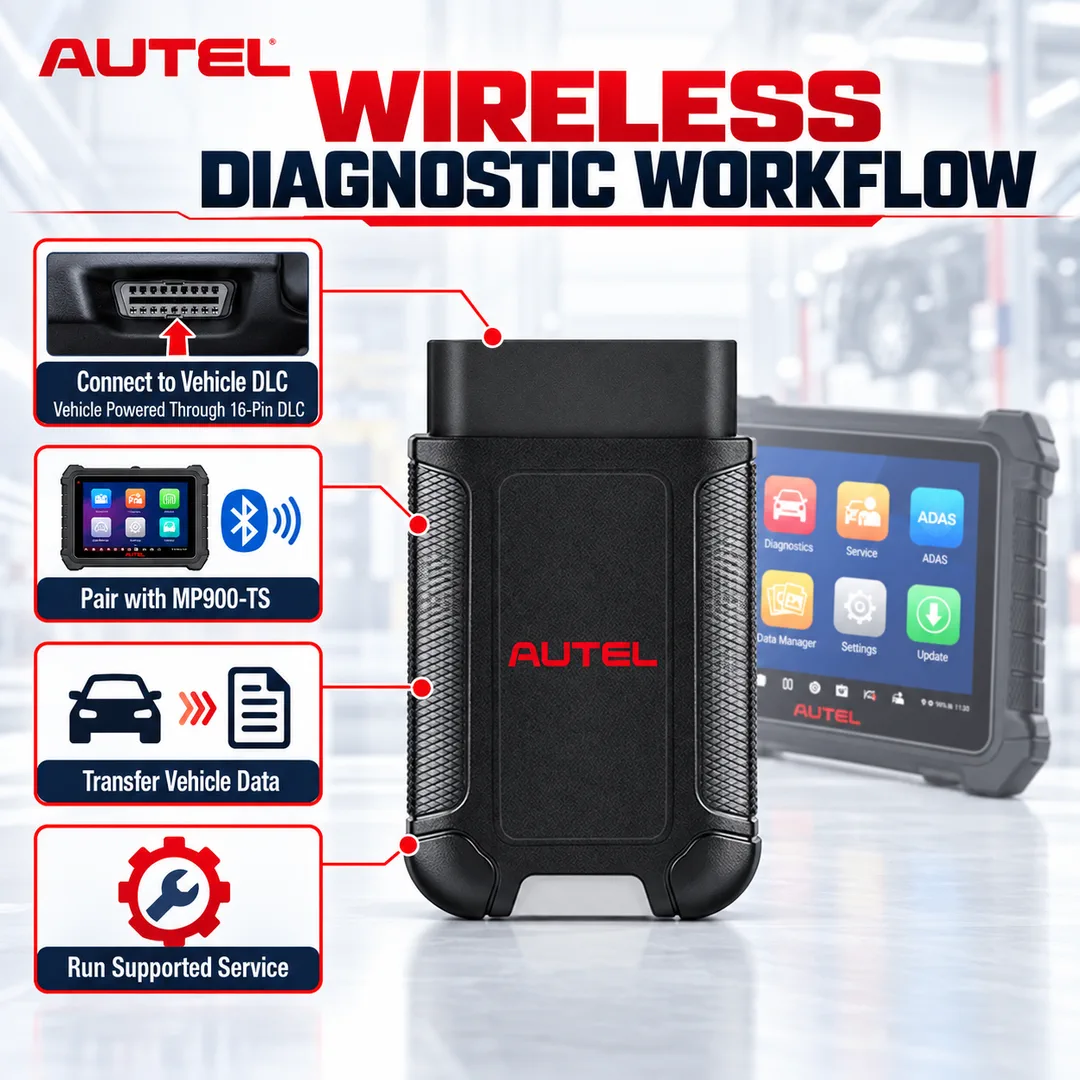

Connect the V150 to the vehicle DLC, pair it through VCI Manager on a compatible Autel tablet and wait for the connection indicator before starting diagnostics. The V150 can be paired to one tablet at a time.

Recommended Workflow

Insert the MaxiVCI V150 into the vehicle’s 16-pin DLC.
Open VCI Manager on the supported Autel tablet and select Bluetooth pairing.
Confirm the connection status, identify the vehicle and begin diagnosis.
Remove the interface from the DLC after use when the vehicle is unattended.

Compatibility and Ordering Guidance

Use only with Autel tablets and software packages that specifically support the MaxiVCI V150. It is not a universal replacement for every Autel VCI, VCMI or J2534 interface.

Package Contents

1 × Autel MaxiVCI V150 interface

Shipping Information

Approximate packed shipping weight: 0.10 kg. Approximate packed dimensions: 11 × 8 × 4 cm (L × W × H). Packaging may vary slightly by production batch.

For model, vehicle and software compatibility confirmation before purchase, contact Automax Tools with the vehicle VIN and the exact Autel tablet or programmer model.
