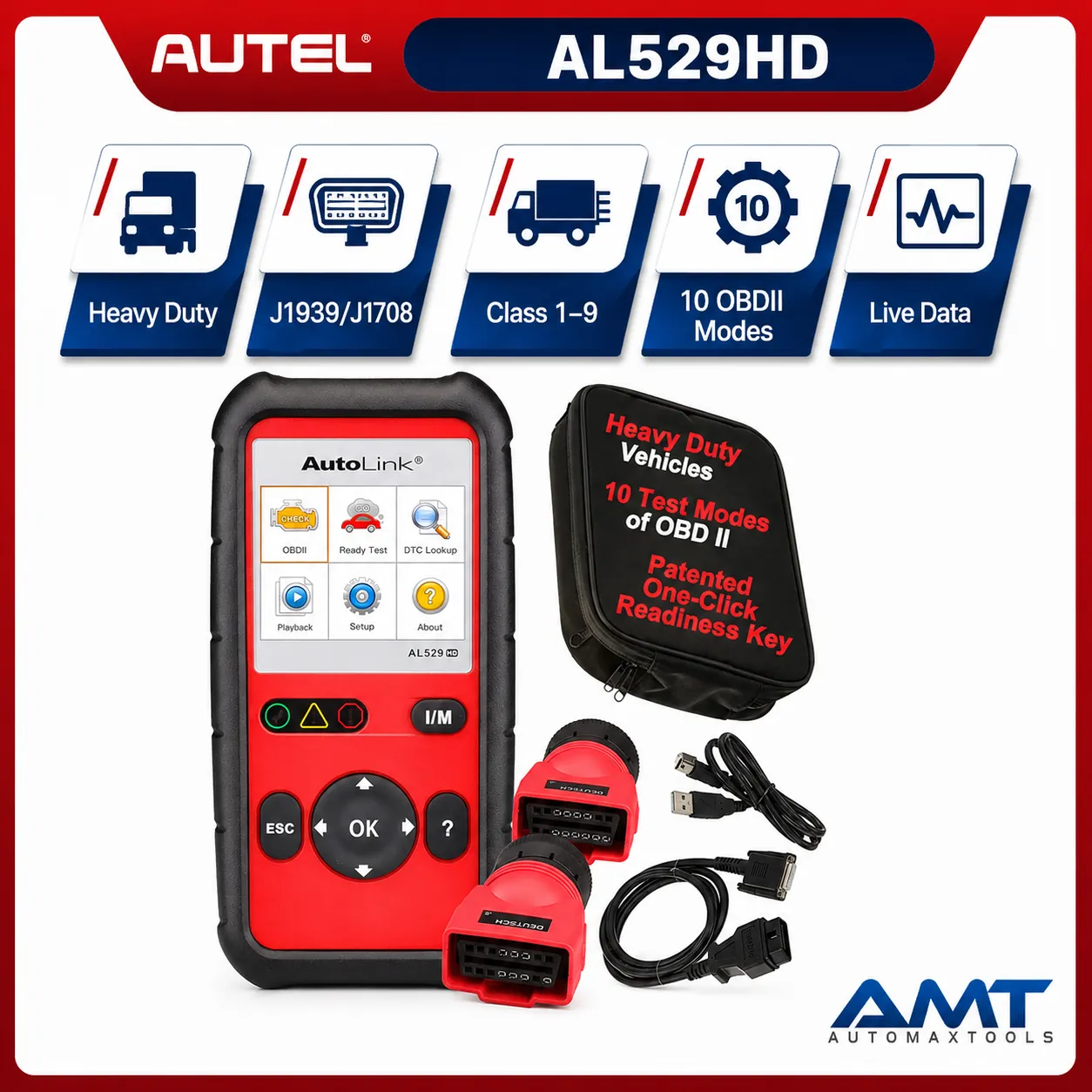

Autel AutoLink AL529HD Heavy-Duty Code Reader | J1939 J1708 | Class 1-9 | 10 OBDII Modes | Live Data | 2-Year Updates
AED 580.00
The Autel AutoLink AL529HD is a heavy-duty engine code reader designed for mixed fleets and workshops servicing vehicles from Class 1 through Class 9. It supports heavy-duty J1939 and J1708 protocols together with standard OBDII functions for compatible light-duty vehicles.
The AL529HD can read and erase heavy-duty engine DTCs, display live and freeze-frame data and graph, record and play back live data. For OBDII vehicles it supports all 10 test modes, enhanced Mode 6 and One-Click I/M readiness testing.
The package includes Deutsch 9-pin and 6-pin heavy-duty connectors plus an OBDII cable, making it practical for truck, bus, fleet and commercial-vehicle maintenance.
| Specification | AutoLink AL529HD |
|---|---|
| Product Type | Heavy-Duty & OBDII Engine Code Reader |
| Model | AutoLink AL529HD |
| Vehicle Classes | Class 1 to Class 9 |
| Heavy-Duty Protocols | SAE J1939 & J1708 |
| Heavy-Duty DTC Read / Clear | Supported |
| OBDII Test Modes | All 10 OBDII Modes |
| Enhanced Mode 6 | Supported |
| Live Data | View, Graph, Record & Playback |
| Freeze Frame | Supported |
| I/M Readiness | One-Click Readiness Function |
| Included HD Connectors | Deutsch 9-Pin & 6-Pin |
| OBDII Cable | Included |
| Applications | Light, Medium & Heavy-Duty Vehicles – Supported Systems |
| Software Updates | 2 Years Included – Automax Tools IMEA Package |
| Warranty | 1 Year Limited Warranty |
Autel AutoLink AL529HD Official Information
View Official Autel AutoLink AL529HD Product Page
1 Year Warranty. 2 Year Free Software Updates.
IP Restriction (works only in India, Middle East and Africa).
Out of stock
Autel AutoLink AL529HD – Heavy-Duty J1939 / J1708 Engine Code Reader
The Autel AutoLink AL529HD is a dedicated heavy-duty and OBDII engine diagnostic tool for fleet operators, truck workshops and repair centers working across multiple vehicle classes.
It combines heavy-duty J1939 / J1708 engine diagnostics with complete OBDII testing for compatible light-duty vehicles.
Class 1 to Class 9 Vehicle Coverage
Autel specifies support ranging from Class 1 vehicles up to Class 9 heavy-duty vehicles, subject to supported protocols and systems.
J1939 & J1708 Heavy-Duty Diagnostics
For compatible heavy-duty vehicles, the AL529HD can read and erase engine diagnostic trouble codes using widely used J1939 and J1708 communication protocols.
Live Data, Graphing & Playback
The scanner can display live and freeze-frame data and can graph, record and play back live parameters for troubleshooting intermittent or performance-related faults.
All 10 OBDII Test Modes
When connected to compatible OBDII vehicles, the AL529HD provides complete OBDII emissions functions, including enhanced Mode 6 and One-Click I/M readiness.
Heavy-Duty Connector Kit
The package includes the connection hardware needed for common heavy-duty applications:
- Deutsch 9-pin connector
- Deutsch 6-pin connector
- Standard OBDII cable
- USB / update connection accessories
Fleet & Commercial Vehicle Applications
The AL529HD is useful for fleet maintenance, commercial workshops, roadside diagnosis and service centers that need a simple handheld tool for engine-code diagnosis across light and heavy vehicle categories.
2 Year Software Updates & Warranty
This Autel AutoLink AL529HD supplied by Automax Tools includes 2 years of software updates and a 1-year limited warranty.
The supplied IMEA version is intended for use in India, the Middle East and Africa.
Ideal for Professional Automotive Use
The Autel AutoLink AL529HD is well suited for:
- Truck workshops
- Fleet maintenance
- Bus and commercial-vehicle service
- Roadside heavy-duty diagnosis
- Mixed light/heavy vehicle workshops
Why Choose the Autel AutoLink AL529HD?
The AL529HD is a compact mixed-fleet solution that combines J1939/J1708 heavy-duty engine diagnostics, live-data analysis and complete OBDII testing in one handheld scanner.
Individual functions and vehicle coverage can vary by manufacturer, model, model year, system and region.
View Official Autel AutoLink AL529HD Product Information
Contact Automax Tools UAE for Autel AutoLink AL529HD
| Weight | 1 kg |
|---|---|
| Dimensions | 18 × 10 × 25 cm |
Features
- Compatible with Heavy Duty Vehicles utilizing SAE-J1939 and SAE-J1708 protocols
- Compatible with domestic, Asian and European vehicles, 1996 and newer. OBDII/EOBD compatible vehicles (ISO9141, ISO14230, ISO15765, SAE-J1850 VPW, SAE-J1850 PWM)
- AutoVIN function for quick manufacturer-specific code identification
- Reads enhanced codes in Powertrain system for Ford, GM and Chrysler
- Enhanced OBDII Mode 6 access
- Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes
- Retrieves vehicle identification information (VIN, CALID and CVN)
- Easily determines the cause of the Check Engine Light/ Malfunction Indicator Light (MIL)
- Turns off Check Engine Light, clears codes and resets monitors
- Views freeze frame data
- Reads live PCM data stream
- Displays live O2 sensor test data
- Graphs data
- Reads, stores and plays back live sensor data
- Troubleshooter code tips aid technician in efficient vehicle diagnostics and repair.
- Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
- Color-coded LED’s and built-in speaker provide visual and audible tone for readiness verification
- Multilingual (including English, Spanish and French) menus and DTC definitions.
- Internet Updatable
- Prints data via Windows PC
Specifications
| Display | 2.8-inch LCD (320×240 dpi) | |
| Connectivity | USB mini 2.0 OBD II DB15 | |
| Operating Temp. | 0℃ to 60 ℃ (32℉ to 140℉) | |
| Storage Temp. | -20℃ to 70 ℃ (-1℉ to 158℉) | |
| External Power | 9.0 to 28.0 V power provided via vehicle battery | |
| Dimensions (LxWxH) | 183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”) | |
| Weight | 242 g (0.533 lb.) |
Accessories
- Code Reader
- DEUTSCHE-6 Adapter
- DEUTSCHE-9 Adapter
- User Manual
- Carrying Case
- Quick Reference Guide
- Main cable
- Mini USB Cable
Downloads
 AL529&529HD Quick Guide V1.00.pdf |  |
| AL529HD User Manual V1.10.pdf | |
| AL529HD_PR_07112017(US Only).pdf | |
