New

<h3>Autel RKEYTY002AL Toyota-Style Universal Wired Flip Remote</h3>
<p>The Autel RKEYTY002AL is a two-button Toyota-style wired universal flip remote for professional replacement-key preparation. It is generated with a compatible Autel MaxiIM programmer and the correct APA cable for the programmer in use.</p>
<h3>Technical Specifications</h3>
<table><thead><tr><th>Specification</th><th>Details</th></tr></thead><tbody>
<tr><td><strong>Model</strong></td><td>RKEYTY002AL</td></tr>
<tr><td><strong>Key Type</strong></td><td>Wired universal remote with flip-key housing</td></tr>
<tr><td><strong>Button Layout</strong></td><td>2 buttons: lock and unlock</td></tr>
<tr><td><strong>Supported Frequencies</strong></td><td>315MHz and 433MHz workflows</td></tr>
<tr><td><strong>Approx. Key Dimensions</strong></td><td>70 × 38.8 × 18.6mm</td></tr>
<tr><td><strong>Approx. Key Weight</strong></td><td>45g</td></tr>
<tr><td><strong>Battery</strong></td><td>CR2032</td></tr>
<tr><td><strong>Transponder</strong></td><td>Not integrated; select and install the vehicle-appropriate transponder separately</td></tr>
</tbody></table>
<p><strong>Compatibility note:</strong> RKEY remotes do not contain an integrated immobilizer transponder and are not intended for proximity/keyless start systems. Vehicle coverage varies; verify the current Autel function list before programming.</p> <h3>Autel RKEYTY002AL Toyota-Style Universal Wired Flip Remote</h3>
<p>The Autel RKEYTY002AL is a two-button Toyota-style wired universal flip remote for professional replacement-key preparation. It is generated with a compatible Autel MaxiIM programmer and the correct APA cable for the programmer in use.</p>
<h3>Technical Specifications</h3>
<table><thead><tr><th>Specification</th><th>Details</th></tr></thead><tbody>
<tr><td><strong>Model</strong></td><td>RKEYTY002AL</td></tr>
<tr><td><strong>Key Type</strong></td><td>Wired universal remote with flip-key housing</td></tr>
<tr><td><strong>Button Layout</strong></td><td>2 buttons: lock and unlock</td></tr>
<tr><td><strong>Supported Frequencies</strong></td><td>315MHz and 433MHz workflows</td></tr>
<tr><td><strong>Approx. Key Dimensions</strong></td><td>70 × 38.8 × 18.6mm</td></tr>
<tr><td><strong>Approx. Key Weight</strong></td><td>45g</td></tr>
<tr><td><strong>Battery</strong></td><td>CR2032</td></tr>
<tr><td><strong>Transponder</strong></td><td>Not integrated; select and install the vehicle-appropriate transponder separately</td></tr>
</tbody></table>
<p><strong>Compatibility note:</strong> RKEY remotes do not contain an integrated immobilizer transponder and are not intended for proximity/keyless start systems. Vehicle coverage varies; verify the current Autel function list before programming.</p>

Autel RKEYTY002AL Toyota-Style Universal Wired Flip Remote | 2 Buttons | 315/433MHz

Name: Autel RKEYTY002AL Toyota-Style Universal Wired Flip Remote | 2 Buttons | 315/433MHz | Automax Tools
SKU: RKEYTY002AL

Categories: Accessories Consumables, Diagnostic Tools Accessories SKU: RKEYTY002AL Tags: Autel, Key Programming, RKEY, RKEYTY002AL, Toyota Style Remote

Rated 0 out of 5

0 reviews

Autel RKEYTY002AL Toyota-Style Universal Wired Flip Remote

The Autel RKEYTY002AL is a two-button Toyota-style wired universal flip remote for professional replacement-key preparation. It is generated with a compatible Autel MaxiIM programmer and the correct APA cable for the programmer in use.

Technical Specifications

Specification	Details
Model	RKEYTY002AL
Key Type	Wired universal remote with flip-key housing
Button Layout	2 buttons: lock and unlock
Supported Frequencies	315MHz and 433MHz workflows
Approx. Key Dimensions	70 × 38.8 × 18.6mm
Approx. Key Weight	45g
Battery	CR2032
Transponder	Not integrated; select and install the vehicle-appropriate transponder separately

Compatibility note: RKEY remotes do not contain an integrated immobilizer transponder and are not intended for proximity/keyless start systems. Vehicle coverage varies; verify the current Autel function list before programming.

Order on WhatsApp

Autel RKEYTY002AL – Two-Button Toyota-Style Universal Remote Key

Key Benefits

Toyota-style two-button flip-remote format.
Programmable remote platform for supported 315MHz and 433MHz applications.
Compatible programming path for XP400-series, XP200 or KM100 setups when used with the correct APA cable.
Separate transponder selection allows the locksmith to match the immobilizer requirement of the vehicle.

Professional Application

Generate the remote using the supported Autel RKEY menu and the appropriate APA151, APA152 or APA153 connection for the programmer. Install the correct transponder and blade, then complete the vehicle-specific learning procedure.

Recommended Workflow

Confirm the vehicle uses a conventional remote/ignition-key system rather than a proximity smart key.
Select the correct frequency and remote profile in the Autel application.
Program the remote, fit the correct transponder and cut the appropriate blade.
Learn the key to the vehicle and test every button and the immobilizer function.

Compatibility and Ordering Guidance

RKEY remotes do not contain an integrated immobilizer transponder and are not intended for proximity/keyless start systems. Vehicle coverage varies; verify the current Autel function list before programming.

Package Contents

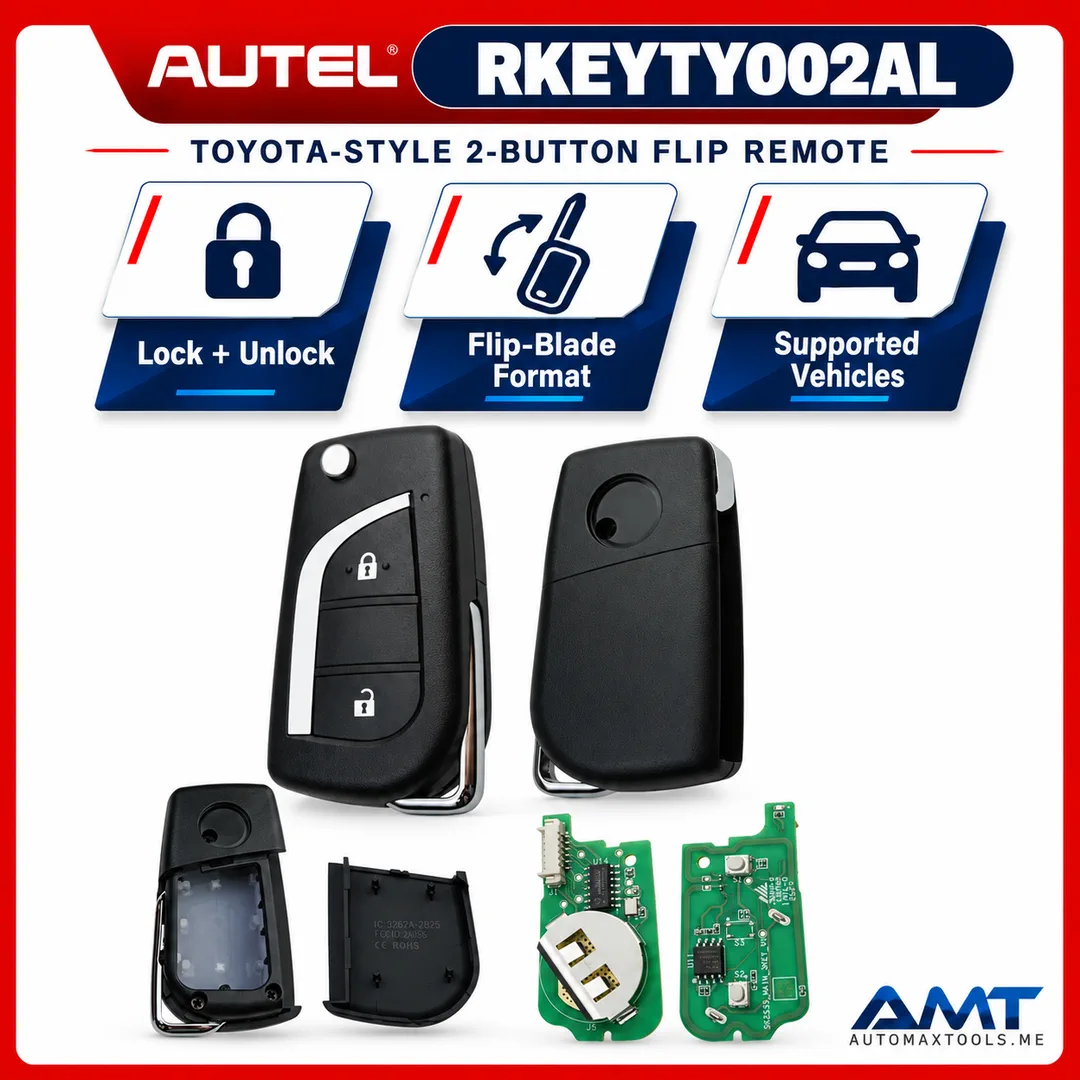

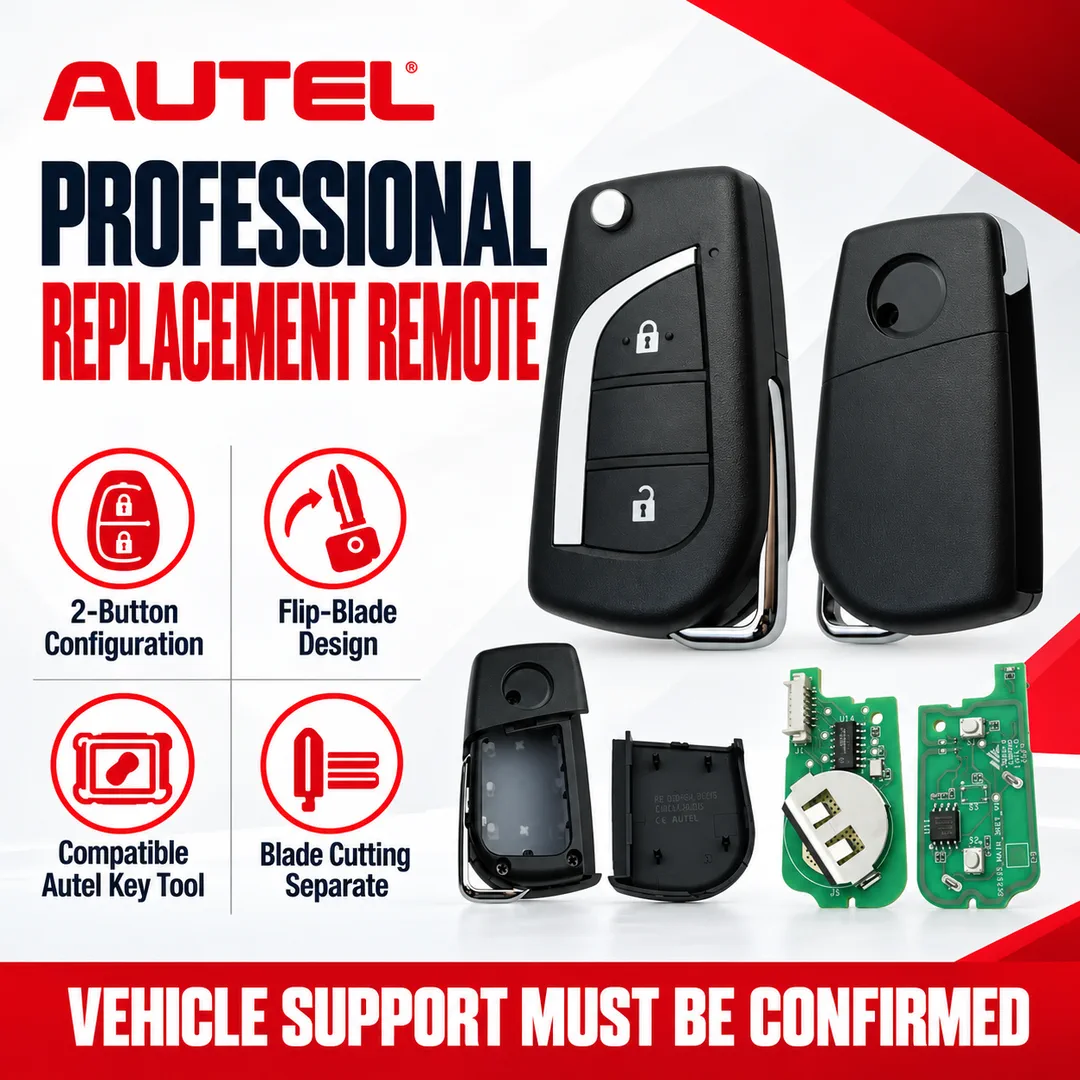

1 × Autel RKEYTY002AL remote key housing and circuit board
Battery as supplied by the manufacturer; blade/transponder may be separate

Shipping Information

Approximate packed shipping weight: 0.08 kg. Approximate packed dimensions: 11 × 7 × 3 cm (L × W × H). Packaging may vary slightly by production batch.

Professional-use notice: Use only for authorized replacement-key work and verify customer ownership before programming.

For model, vehicle and software compatibility confirmation before purchase, contact Automax Tools with the vehicle VIN and the exact Autel tablet or programmer model.
