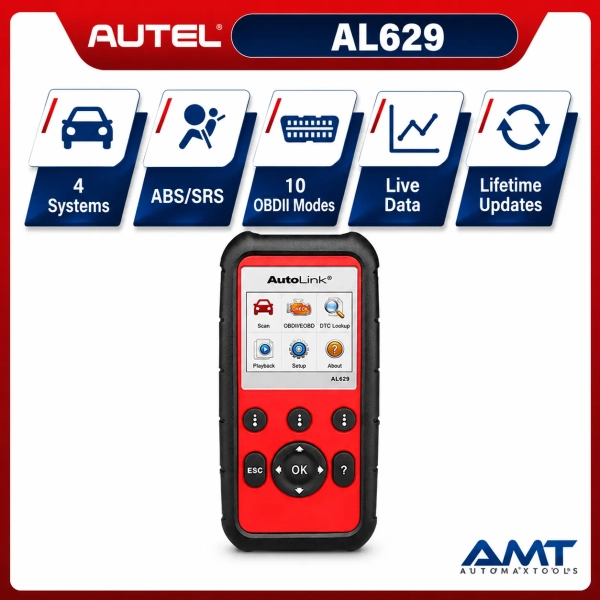

Autel AutoLink AL629 4-System OBD2 Scanner | Engine ABS SRS Transmission | 10 OBDII Modes | Live Data | 2-Year Updates
SR 670.46
The Autel AutoLink AL629 is a professional 4-system handheld diagnostic scanner designed to read and erase faults from Engine, ABS, SRS/Airbag and Transmission systems on supported vehicles. It combines enhanced OBDII diagnostics, live-data graphing and emissions testing in a compact workshop-ready tool.
The AL629 supports all 10 OBDII test modes, enhanced Mode 6, live PCM data, freeze-frame information, vehicle information and I/M readiness. It can display, graph, record and play back live data for more useful fault analysis than a basic code reader.
A 2.8-inch 320 × 240 color display, PC report printing and broad 1996-and-newer OBDII vehicle coverage make the AL629 suitable for workshops, used-car inspection and advanced maintenance diagnosis.
| Specification | AutoLink AL629 |
|---|---|
| Product Type | 4-System OBD2 / EOBD Diagnostic Scanner |
| Model | AutoLink AL629 |
| Systems | Engine, ABS, SRS / Airbag & Transmission |
| Display | 2.8″ LCD, 320 × 240 |
| OBDII Test Modes | All 10 OBDII Modes |
| Enhanced Mode 6 | Supported |
| Live Data | View, Graph, Record & Playback |
| Freeze Frame | Supported |
| Vehicle Information | VIN, CALID & CVN |
| I/M Readiness | Supported |
| DTC Functions | Read / Clear Generic, Pending & Manufacturer-Specific Codes |
| PC Printing | Supported |
| Vehicle Coverage | Most OBDII / CAN Vehicles, 1996+ |
| Power | Powered Through Vehicle Diagnostic Port |
| Software Updates | 2 Years Included – Automax Tools IMEA Package |
| Warranty | 1 Year Limited Warranty |
Autel AutoLink AL629 Official Information
View Official Autel AutoLink AL629 Product Page
1 Year Warranty. 2 Year Free Software Updates.
IP Restriction (works only in India, Middle East and Africa).
Out of stock
Autel AutoLink AL629 – 4-System OBD2, ABS, SRS & Transmission Scanner
The Autel AutoLink AL629 is a compact professional code scanner for technicians who need more than engine-only OBD2 diagnosis.
It provides dedicated fault-code access to four major vehicle systems — Engine, ABS, SRS/Airbag and Transmission — while also supporting complete OBDII emissions diagnostics.
4-System Diagnostic Coverage
On supported vehicles, the AL629 can read and erase diagnostic trouble codes from:
- Engine / Powertrain
- ABS / Anti-Lock Braking System
- SRS / Airbag System
- Automatic Transmission
Complete 10-Mode OBDII Diagnostics
The AL629 supports all 10 OBDII test modes for compatible vehicles, giving technicians access to emissions-related diagnostic information beyond simple code reading.
- Read and erase OBDII trouble codes
- Live PCM data
- Freeze-frame data
- I/M readiness / emissions status
- O2 monitor data
- On-board monitor testing
- Component testing
- Vehicle information
- Permanent / pending code information
- Enhanced Mode 6 diagnostics
Live Data Graphing, Recording & Playback
Live sensor data can be viewed in real time, graphed for easier interpretation, recorded and played back later. This helps when diagnosing intermittent faults or comparing sensor behavior during a road test.
Vehicle Information & PC Reports
The AL629 can retrieve VIN, CALID and CVN information on supported vehicles. Diagnostic information can also be printed through a Windows PC for workshop records or customer reports.
2.8″ Handheld Workshop Design
The scanner uses a 2.8-inch 320 × 240 color display and is powered directly from the vehicle diagnostic connector, so no separate battery charging is required for normal operation.
2 Year Software Updates & Warranty
This Autel AutoLink AL629 supplied by Automax Tools includes 2 years of software updates and a 1-year limited warranty.
The supplied IMEA version is intended for use in India, the Middle East and Africa.
Ideal for Professional Automotive Use
The Autel AutoLink AL629 is well suited for:
- General repair workshops
- Used-car inspection
- Advanced DIY diagnosis
- Brake and airbag fault diagnosis
- Multi-brand maintenance workshops
Why Choose the Autel AutoLink AL629?
The AL629 is a practical step up from a basic OBD2 reader because it adds ABS, SRS and transmission fault-code access together with complete 10-mode OBDII testing and live-data analysis.
Individual functions and vehicle coverage can vary by manufacturer, model, model year, system and region.
View Official Autel AutoLink AL629 Product Information
Contact Automax Tools UAE for Autel AutoLink AL629
| Weight | 1 kg |
|---|---|
| Dimensions | 18 × 10 × 25 cm |
Specifications
| Display | 2.8-inch LCD (320 x 240 dpi) |
| Connectivity | USB mini 2.0 OBD II DB15 |
| Operating Temp | -10°C to 60°C (14°F to 140°F) |
| Storage Temp | -20°C to 70°C (-4°F to 158°F) |
| External Power | 8.0 to 18.0 V power provided via vehicle battery |
| Dimensions (LxWxH) | 182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”) |
| Net Weight | 237.9 g (0.524 lb.) |
