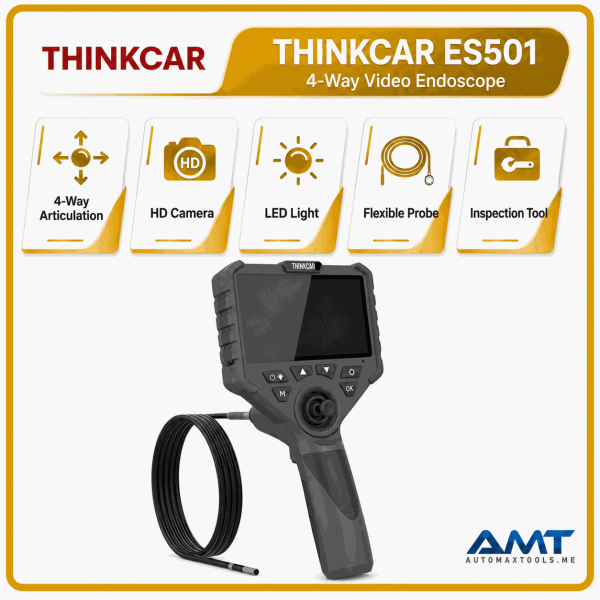

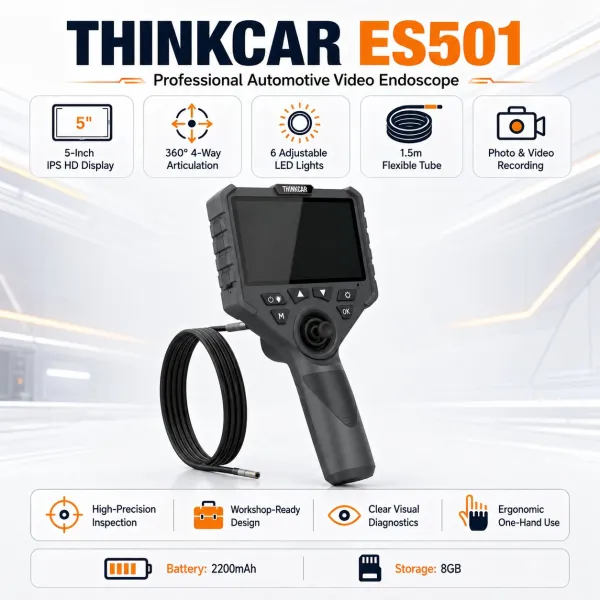

THINKCAR ES501 4-Way Articulating Video Endoscope – 5″ IPS, 6.2mm Probe, LED & 720p Recording
OMR 117.08
THINKCAR ES501 is a professional 4-way articulating automotive inspection camera with a 5-inch IPS display, 6.2mm probe and adjustable LED lighting.
Key Features
- 4-way articulating probe with 360° directional control
- 5-inch IPS inspection display
- 6.2mm camera head with six adjustable LEDs
- 1.5m flexible wear-resistant probe
- 1280×720 photo/video recording with 8GB storage
Quick Specifications
| Display | 5″ IPS, 480×854 |
|---|---|
| Camera Head | 6.2mm |
| Probe | 1.5m, 4-way articulating |
| Steering | Up to 210° articulation |
| Lighting | 6 adjustable LEDs |
| Battery | 2200mAh, approx. 3+ hours |
Out of stock

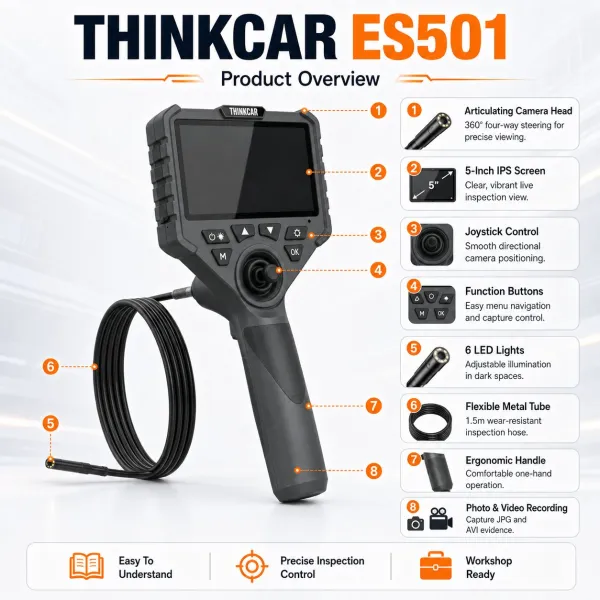

THINKCAR ES501 4-Way Articulating Video Endoscope – 5″ IPS, 6.2mm Probe, LED & 720p Recording
The THINKCAR ES501 is a professional automotive video endoscope for inspecting engine and vehicle areas that are difficult to reach without disassembly. Its four-way articulating probe gives the technician directional control inside cylinders, pipes, HVAC ducts and other restricted spaces.
Why Choose This Tool?
Unlike a basic flexible borescope, the ES501 allows the probe tip to be steered around internal components. This makes it easier to inspect cylinder walls, valves, evaporators, intake paths, catalytic converters and concealed body areas while keeping dismantling to a minimum.
Diagnostic & Service Capabilities
- Four-way articulated camera control for directional inspection
- 5-inch IPS screen for live workshop viewing
- Six adjustable LEDs for dark cavities
- Photo and video capture up to 1280×720
- High-temperature warning and IP67-rated camera lens for demanding inspection work
Hardware & Connectivity
| Screen | 5″ IPS, 480×854 |
|---|---|
| Lens Diameter | 6.2mm (approx.) |
| Image Sensor | Approx. 1 megapixel |
| Probe Length | 1.5m flexible metal hose |
| Articulation | 4-way, up to approx. 210° steering |
| Lighting | 6 adjustable LEDs |
| Recording | JPG / AVI, up to 1280×720 |
| Battery / Storage | 2200mAh / 8GB TF storage |
Ideal Workshop Applications
- Engine-cylinder and piston inspection
- HVAC evaporator and duct inspection
- Intake, exhaust and catalytic-converter checks
- Used-car inspection and hidden-area visual diagnosis
Compatibility & Package Notes
The camera lens is intended for inspection use; observe temperature warnings and avoid exposing the probe or electronics to conditions beyond the manufacturer’s specified operating limits.
Before ordering: Vehicle coverage, coding, programming, active tests and service functions can vary by make, model, year, ECU, region and software authorization. Contact Automax Tools with the VIN or exact vehicle details if you need confirmation for a specific function.
Professional Workshop Supply from Automax Tools
Supplied by Automax Tools for professional garages, diagnostic technicians, mobile mechanics and automotive service businesses in the UAE, GCC and international markets.
